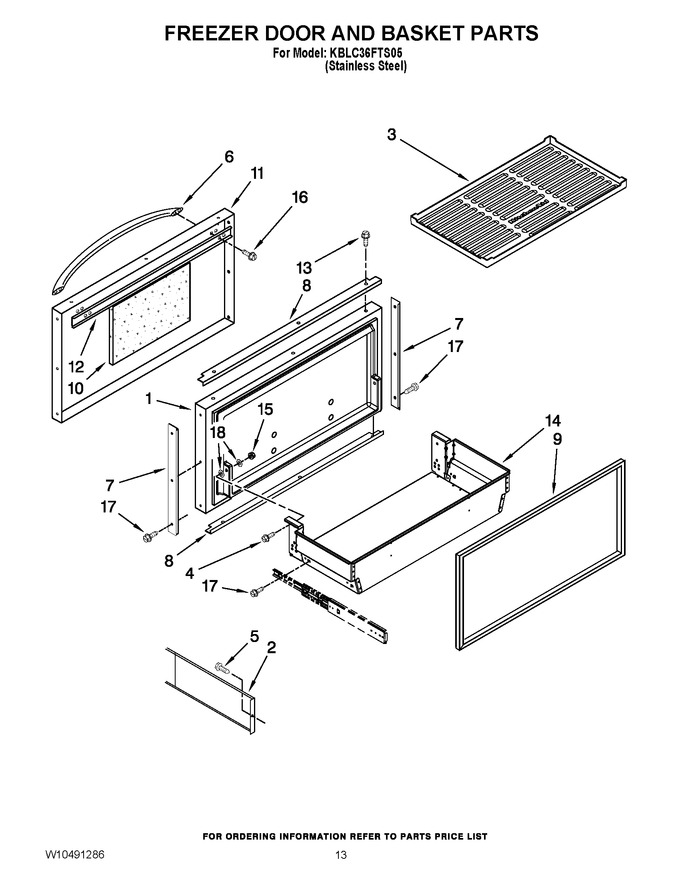

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258746		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	2314025		Mat, Basket		Appelez-nous	-
4	W10135775		Screw, 5/16 X 3/4				$ 14.93
5	WP488234		Screw, 8/32 X 1/4   (Replaces: W10135792)				$ 7.08
6	WP2316868		Handle   (Replaces: 2316868)			Immediately	$ 281.43
7	2300025		Spacer, Door Edge - Side		Appelez-nous	-
8	2300027		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	W11624996		Door Gasket, Magnetic   (Replaces: W10144009)			Immediately	$ 243.72
10	2327468		Filler, Foam		Appelez-nous	-
11	W10194426		Skin, Door		Appelez-nous	-
12	W10127710		Plate Door, Handle			Immediately	$ 25.94
13	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
14	W10258182		Basket Assembly, Freezer				$ 254.40
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
17	W10109030		Screw 10-24 X 1/4				$ 15.35
18	W10001190		Washer				$ 8.80

    View Diagram in Separate Window       Print Part List
