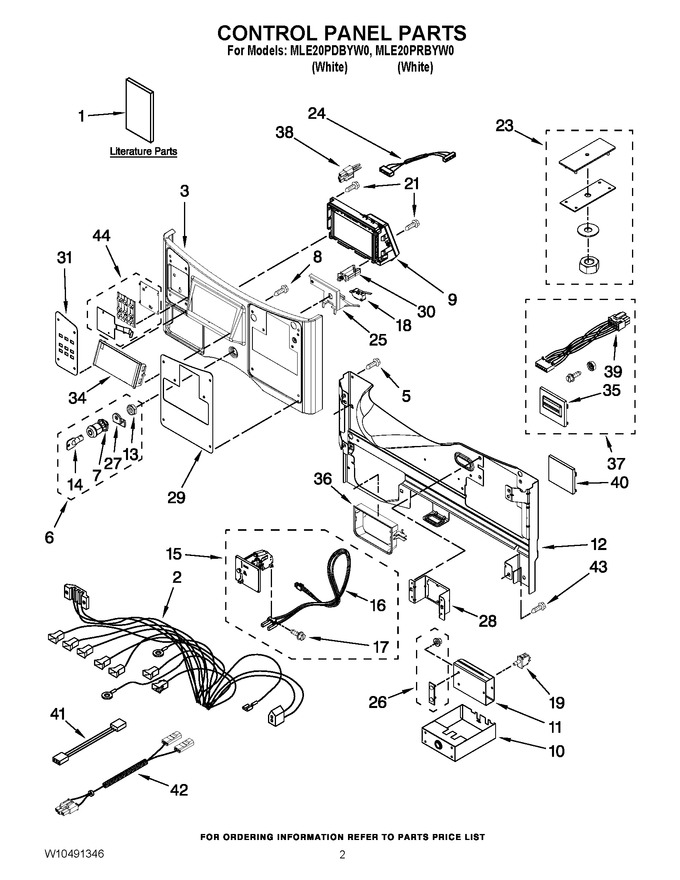

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10045641 | Installation Instruction |
|
- | |||||
| 1 | W10335471 | Tech Sheet |
|
- | |||||
| 1 | W10491346 | Parts List |
|
- | |||||
| 2 | W10242900 | Harness, Main |
|
- | |||||
| 3 | W11181684 | Panel Assembly (pr) (Replaces: W10198201) |
|
- | |||||
| 3 | W11181684 | Panel Assembly (pd) (Replaces: W10198200) |
|
- | |||||
| 5 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 6 | WPW10133264 | Service & Programming Lock (Replaces: W10133264) |
|
$ 145.97 | |||||
| 7 | W11395752 | Hex Nut, 27-3/4 (Replaces: W10139762) |
|
$ 13.69 | |||||
| 8 | 3400408 | Screw, 4-40 X 5/8 |
|
- | |||||
| 9 | W10827636 | Techbox Assembly (pr) (Replaces: W10198220) |
|
$ 270.26 | |||||
| 9 | W10827410 | Techbox Assembly (pd) (Replaces: W10198219) |
|
Immediately | $ 953.99 | ||||
| 10 | W11204019 | Coin-box (Replaces: W10133248) |
|
$ 163.85 | |||||
| 11 | W11204020 | Vault-body Assembly (Replaces: W10133258) |
|
$ 421.72 | |||||
| 12 | W11200173 | Console Bracket (Replaces: W10198369) |
|
- | |||||
| 13 | WPW10133264 | Hex Nut 28-9/32 (Replaces: W10177242) |
|
$ 145.97 | |||||
| 14 | WPW10140858 | Key, Access Door (Replaces: W10140858) |
|
Immediately | $ 22.10 | ||||
| 15 | WPW10133242 | Coin Drop Assy. (Replaces: W10133242) |
|
$ 126.51 | |||||
| 16 | WPW10247389 | Coin Sensor Assy, Coin 1 (white) (Replaces: W10247389) |
|
Immediately | $ 121.70 | ||||
| 17 | WP3395530 | Screw, 6-20 X 1.00 (Replaces: W10142655) |
|
$ 8.57 | |||||
| 18 | WPW10447152 | Service Access, Switch (Replaces: W10447152) |
|
$ 43.26 | |||||
| 19 | WPW10131838 | Switch-vault & Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 21 | WPW10273971 | Screw, 6-19 X 1/2 (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 23 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 132.30 | |||||
| 24 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 32.68 | |||||
| 25 | W10198375 | Support-console |
|
- | |||||
| 26 | W10159907 | Mounting Strap, Weld Assembly |
|
- | |||||
| 27 | W11165684 | Cam-lock (Replaces: W10133266) |
|
$ 9.57 | |||||
| 28 | WPW10198323 | Bracket (pr) (Replaces: W10198323) |
|
$ 25.90 | |||||
| 28 | W10198322 | Bracket (pd) |
|
- | |||||
| 29 | W10198334 | Fascia (pd) |
|
$ 129.18 | |||||
| 29 | W10198336 | Fascia (pr) |
|
$ 283.20 | |||||
| 30 | W10129069 | Clip, Wire |
|
- | |||||
| 31 | W10198284 | Fascia-buttons |
|
$ 195.55 | |||||
| 34 | W10198390 | Window Display |
|
$ 86.45 | |||||
| 35 | WPW10198367 | Bezel-pr (Replaces: W10198367) |
|
$ 24.53 | |||||
| 36 | W10198345 | Collar, Dispenser |
|
- | |||||
| 37 | W11519983 | Card Reader, Conversion Kit (Replaces: W10198451) |
|
$ 78.10 | |||||
| 38 | W11129439 | Service-vault Switch Jumper (Replaces: W10133282) |
|
$ 17.66 | |||||
| 39 | WPW10239515 | Card Reader, Harness (Replaces: W10239515) |
|
$ 155.18 | |||||
| 40 | W10198366 | Cover Pd/pn |
|
- | |||||
| 41 | W10342214 | Cable Set, Ui To Ccu Communication |
|
$ 73.16 | |||||
| 42 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 43 | WPW10131119 | Screw, 8-18 X 1/2 (Replaces: W10386302) |
|
$ 7.30 | |||||
| 44 | WPW10198198 | Button Set, Assembly (Replaces: W10198198) |
|
$ 243.86 |
