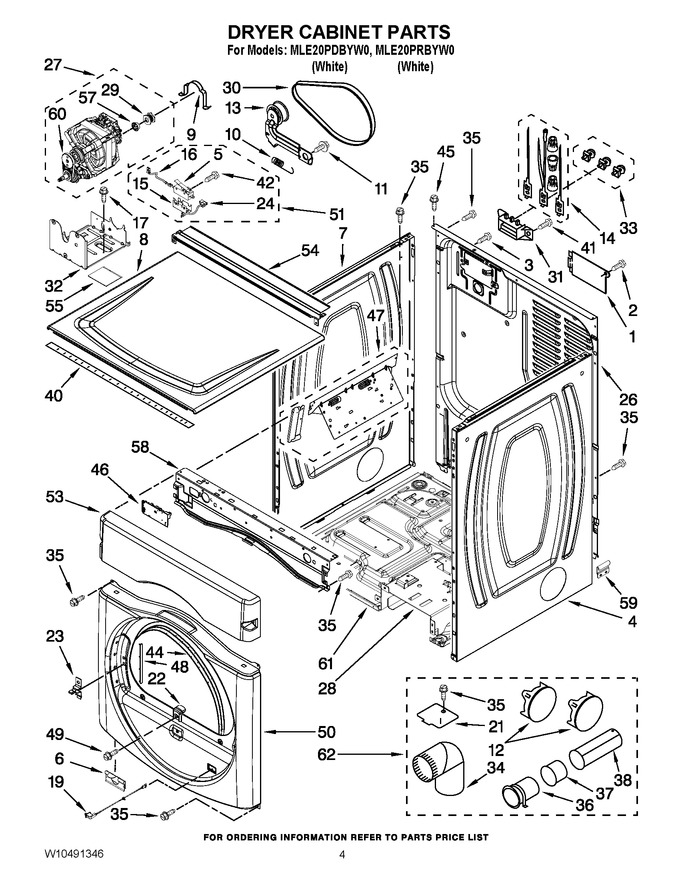

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 134.77 | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw, Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10542714 | Panel, Side (r.h.) (Replaces: 8565048) |
|
$ 350.58 | |||||
| 5 | WP8564010 | Switch, Broken Belt (Replaces: 8564010) |
|
$ 104.11 | |||||
| 6 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 7 | W10542714 | Panel, Side (l.h.) (Replaces: 8565054) |
|
$ 350.58 | |||||
| 8 | WPW10336080 | Top (Replaces: 8563730) |
|
$ 331.99 | |||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 13 | WPW10344192 | Idler Assembly (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Item. 33 ) |
|
Immediately | $ 106.04 | ||||
| 15 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 16 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 17 | WP681414 | Screw, 8-18 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 19 | W10128087 | Assembly, Door Switch |
|
$ 95.53 | |||||
| 21 | WPW10354249 | Cover, Plate (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8580015 | Ramp, Door |
|
$ 88.24 | |||||
| 23 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 24 | 8539892 | Wire-motor- To-belt Switch |
|
- | |||||
| 26 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 27 | W11234001 | Motor Assembly 60 Hz. (Replaces: W10396034) |
|
Immediately | $ 433.87 | ||||
| 28 | W10133261 | Vault Switch, Bracket |
|
- | |||||
| 29 | WP8066184 | Pulley (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | 279393 | Terminal Block Screw Kit ( For Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 34 | WPW10416072 | 4`` - 90° Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 40 | WP8318396A | Foam-seal (iec) (Replaces: 8318396) |
|
$ 39.71 | |||||
| 41 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 42 | 777849 | Screw, 6-20 X 1.00 (Replaces: W10002600) |
|
$ 7.36 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 46 | WPW10376685 | Control Board (Replaces: W10376685) |
|
$ 512.83 | |||||
| 47 | WP8563727 | Control Bracket (Replaces: 8563727) |
|
$ 179.69 | |||||
| 48 | 8565043 | Plug, Strip Front Panel |
|
$ 97.29 | |||||
| 49 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 50 | WPW10117421 | Front Panel (includes Illus. 44) (Replaces: W10117421) |
|
$ 297.23 | |||||
| 51 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 27.72 | |||||
| 53 | W11674367 | Enclosure-ccu Asm. (Replaces: W10198363) |
|
$ 203.84 | |||||
| 54 | W10198224 | Bracket, Water Channel |
|
- | |||||
| 55 | W11113654 | Sound Pad, Motor (Replaces: W10212660) |
|
$ 23.29 | |||||
| 57 | WP3393657 | Belt, Restrainer (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 58 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 59 | W10198461 | Stack Bracket |
|
- | |||||
| 60 | WP3405160 | Belt, Poly V (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 61 | W11116960 | Base, Cabinet (pd (coin Drop)) (Replaces: W10198309) |
|
- | |||||
| 61 | W11215531 | Base, Cabinet (pr (card Reader)) (Replaces: 8565046) |
|
$ 365.36 | |||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
