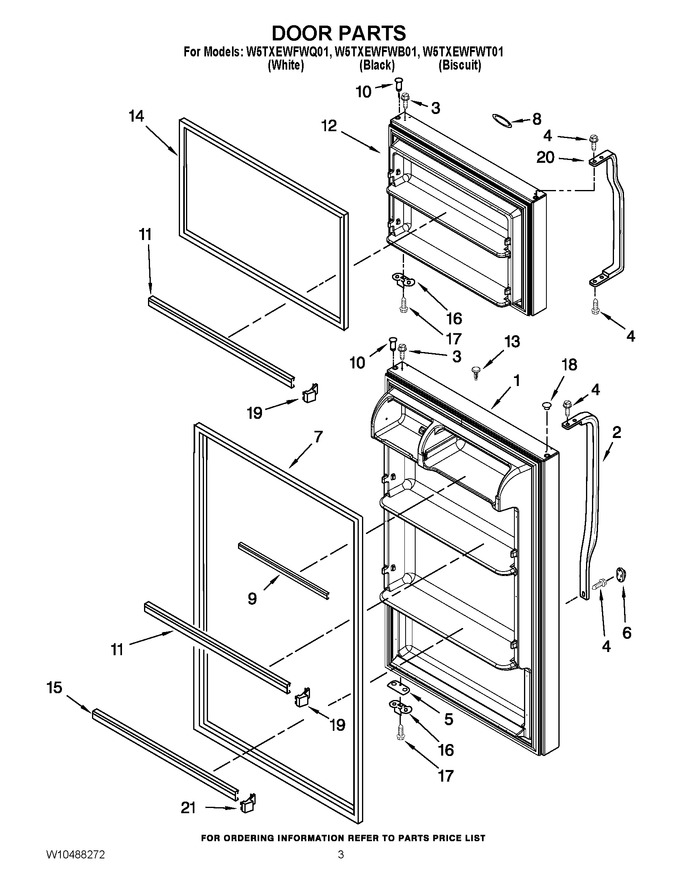

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10231742		Refrigerator Door (includes Items 7 & 10) (black)   (Replaces: W10231742)		Appelez-nous	-
1	2316383W		Refrigerator Door (includes Items 7 & 10) (white)		Appelez-nous	-
1	LW10287865		Refrigerator Door (includes Items 7 & 10) (biscuit)   (Replaces: W10287865)		Appelez-nous	-
2	WP2221946T		Handle, Refrigerator (biscuit)   (Replaces: 2221946T)				$ 152.26
2	WP2221946W		Handle, Refrigerator (white)   (Replaces: 2221946W)			Immediately	$ 130.11
2	WP2326169B		Handle, Refrigerator (black)   (Replaces: 2326169B)				$ 154.75
3	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 8.37
4	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
5	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
5	2258681B		Shim, Door Stop (black)				$ 45.33
6	2202819T		Cover, Screw (biscuit)				$ 8.02
6	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 8.14
6	WP2202819B		Cover, Screw (black)   (Replaces: 2202819B)				$ 11.43
7	WP2319265T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190033)			Immediately	$ 184.89
7	2319265B		Door Gasket, Magnetic (black)   (Replaces: 2264724)				$ 329.50
8	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
9	W11129820		Trim, Door Shelf (upper)   (Replaces: W10234242)			Immediately	$ 127.34
10	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
11	WP2266727		Trim, Door Narrow   (Replaces: 2266727)			Immediately	$ 92.50
12	2316026W		Freezer Doorn (includes Items 10 & 14) (white)				$ 479.27
12	W10231744		Freezer Doorn (includes Items 10 & 14) (black)		Appelez-nous	-
12	LW10287866		Freezer Doorn (includes Items 10 & 14) (biscuit)   (Replaces: W10287866)		Appelez-nous	-
13	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.61
13	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
13	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.97
14	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 268.28
14	WP2319263T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190031)			Immediately	$ 169.53
15	WP2266738		Trim, Door Shelf (wide)   (Replaces: 2266738)				$ 111.69
16	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
17	WP488921		Screw 8-15 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
18	WP2212648		Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
18	WP2212649		Plug, Hinge (biscuit)   (Replaces: 2212649)				$ 7.99
18	WP2212651		Plug, Hinge (black)   (Replaces: 2212651)				$ 24.21
19	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
20	2202098B		Handle, Freezer (black)				$ 151.23
20	WP2202098		Handle, Freezer (white)   (Replaces: 2202098)				$ 156.82
20	WP2215015		Handle, Freezer (biscuit)   (Replaces: 2215015)				$ 153.23
21	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 13.18
