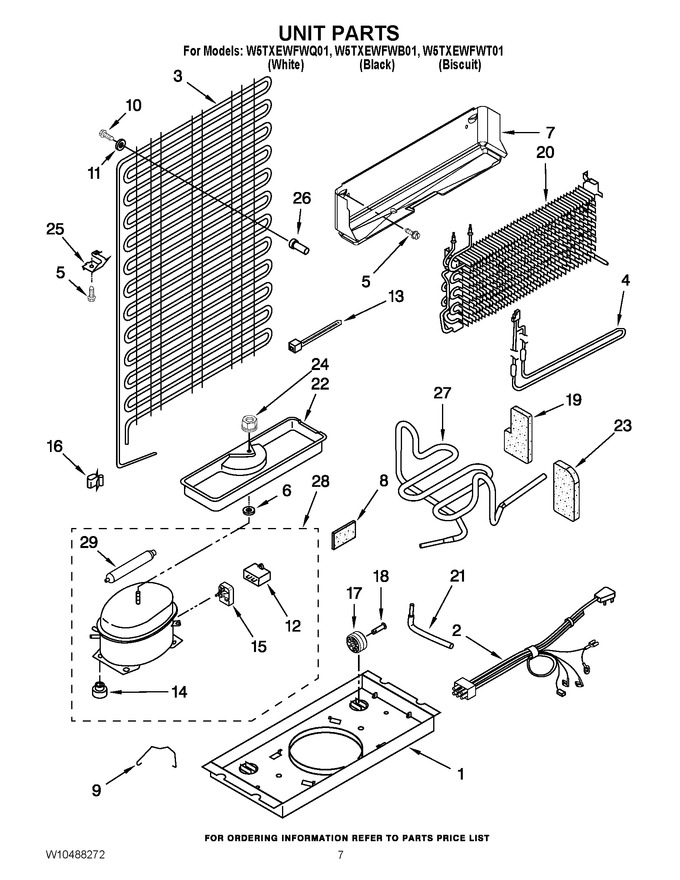

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Support Plate, Compressor |
|
$ 32.07 | |||||
| 2 | W10151654 | Wire Assy. Unit |
|
$ 293.67 | |||||
| 3 | WPW10219348 | Condenser (Replaces: W10219348) |
|
$ 295.28 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2263749) |
|
Immediately | $ 93.70 | ||||
| 5 | WP489442 | Screw 8-18 X .600 (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 6 | WP487802 | Washer-nylon (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.07 | ||||
| 9 | W11661170 | Bale Strap (Replaces: W10174384) |
|
Immediately | $ 11.30 | ||||
| 10 | 8533892 | Screw 8-18 X 3.00 |
|
- | |||||
| 11 | 8526417 | Washer (Replaces: VS611) |
|
$ 13.94 | |||||
| 12 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 13 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.90 | |||||
| 14 | WP2163786 | Grommet (Replaces: 2222084) |
|
$ 7.96 | |||||
| 15 | WPW10448874 | Start Device, Combination (relay & Overload) (Replaces: W10448874) |
|
Immediately | $ 136.08 | ||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller, Rear (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 7.19 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263919 | Evaporator Assy. (Replaces: 2263919) |
|
$ 309.15 | |||||
| 21 | W10205260 | Process Tube |
|
- | |||||
| 22 | W10174378 | Evaporator Tray |
|
$ 156.50 | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.24 | |||||
| 25 | 4386951 | Clip, Condenser (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Spacer |
|
- | |||||
| 27 | W10174380 | Tube, Discharge |
|
$ 46.50 | |||||
| 28 | W10233960 | Compressor (includes Items 12, 14, 15, 29) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10445423) |
|
Immediately | $ 513.66 | ||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 52.57 | ||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. (r134a)) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 91.35 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 |
