Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11219665 Endcap (right Hand)   (Replaces: W10184438) Special Order $ 45.17

1 W11219664 Endcap (left Hand)   (Replaces: W10184437) Special Order $ 153.83

2 W10211996 Bracket, Console Appelez-nous -
3 WPW10318550 Console   (Replaces: W10318550) Special Order $ 273.23

4 WPW10331686 Module, Spark   (Replaces: W10331686) In-Stock Immediately $ 393.86

5 W10198745 Cover, Upper Special Order $ 128.90

6 W10192841 Shield, Heat Special Order $ 106.69

7 WPW10340317 Control, Mrc   (Replaces: W10340317) Special Order $ 489.74

8 W10333917 Bracket, Dsi Appelez-nous -
9 W10184251 Cover, Main Wire Appelez-nous -
10 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.72

11 W10678666 Assembly, Overlay   (Replaces: W10318563) Special Order $ 346.14

12 8523412 Bracket, Rear Special Order $ 167.90

13 8522425 Module, Spark Special Order $ 122.75


    View Diagram in Separate Window     Print Icon   Print Part List

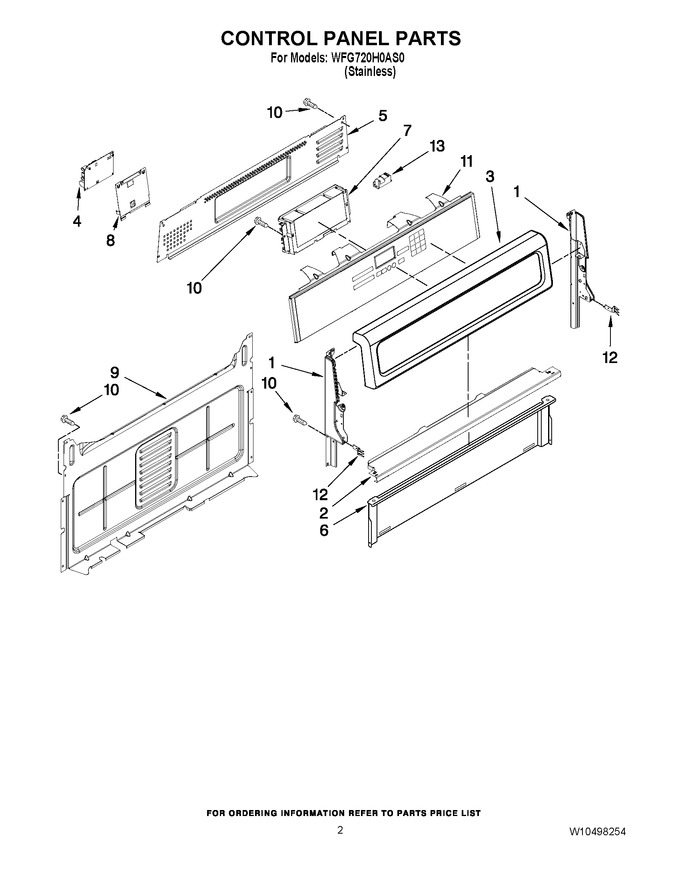

Diagram for WFG720H0AS0
