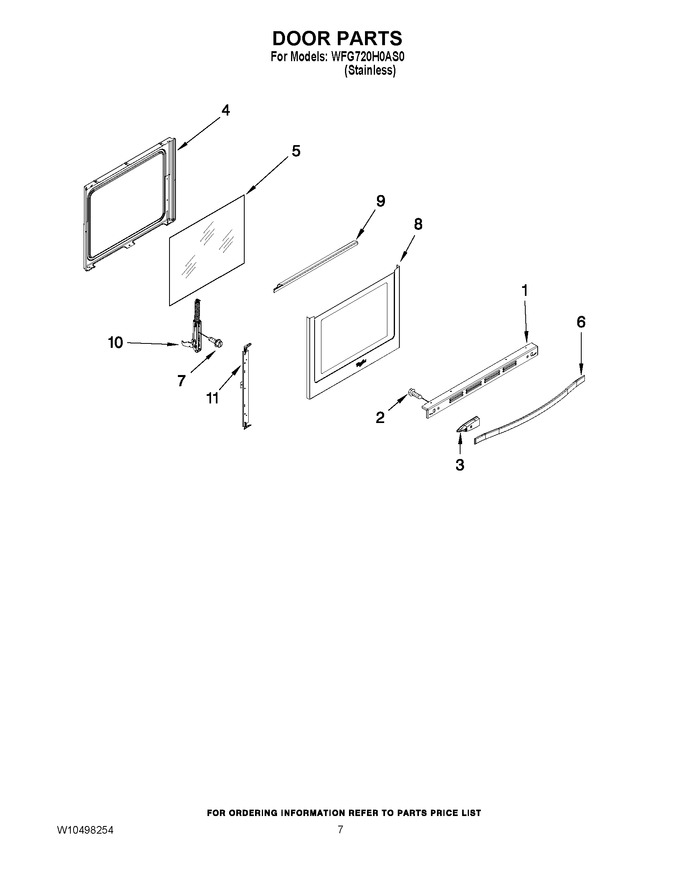

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335333 | Trim-vent |
|
$ 174.97 | |||||
| 2 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10254688 | Standoff, Handle (Replaces: W10254688) |
|
$ 77.48 | |||||
| 4 | WPW10297318 | Liner-door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 6 | WPW10618239 | Handle (Replaces: W10254687) |
|
Immediately | $ 175.54 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 8 | W10289144 | Door, Outer (includes Badge) |
|
$ 237.78 | |||||
| 9 | W10294853 | Bracket, Glass |
|
Immediately | $ 237.04 | ||||
| 10 | WPW10440013 | Hinge-door (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 11 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 |
