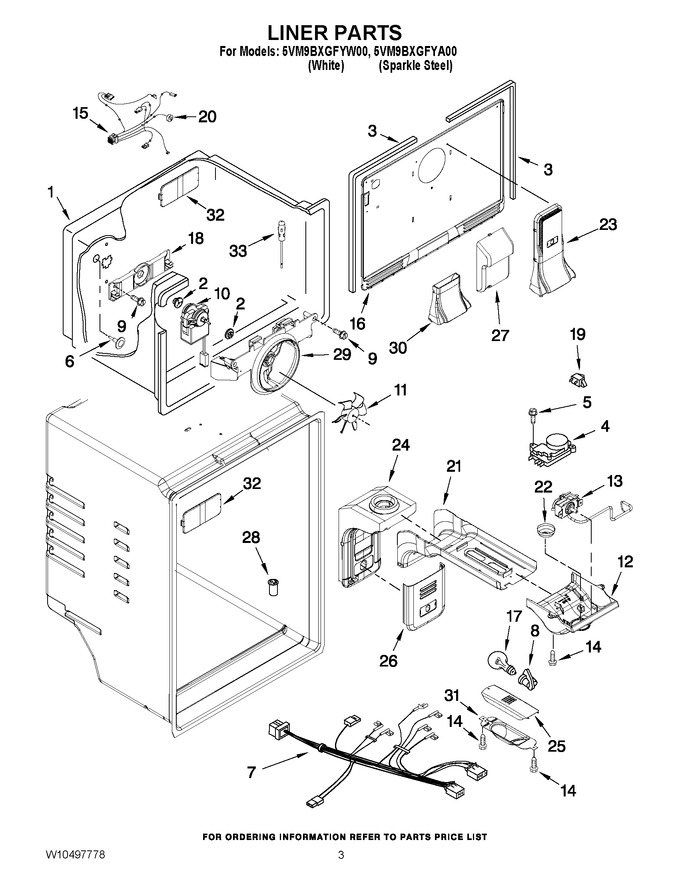

01 - Cabinet Parts
02 - Liner Parts
03 - Refrigerator Door Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evap Cover (Replaces: 2254359) |
|
$ 28.12 | |||||
| 4 | WP2321259 | Defrost Timer (Replaces: 2321259) |
|
$ 163.76 | |||||
| 5 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 6 | WP941839 | Hole Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 7 | W10403661 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 13.87 | ||||
| 9 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 10 | WPW10173141 | Fan Motor (Replaces: W10173141) |
|
$ 318.76 | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W10440730 | Control Box |
|
- | |||||
| 13 | WPW10584888 | Thermostat Assy (Replaces: W10343913) |
|
Immediately | $ 197.80 | ||||
| 14 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 15 | W10495656 | Evap Fan Wire Assy (includes Item 20) |
|
- | |||||
| 16 | W10385128 | Cover, Evaporator |
|
$ 82.68 | |||||
| 17 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 18 | 2254454 | Bracket, Evap. Fan |
|
Immediately | $ 75.44 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | WPW10392132 | Defrost, Bi-metal (Replaces: W10392132) |
|
Immediately | $ 9.05 | ||||
| 21 | WPW10305175 | Air Diffuser Cover (Replaces: W10459451) |
|
$ 114.36 | |||||
| 22 | W10356940 | Knob, Control |
|
- | |||||
| 23 | W10305174 | Air Tower |
|
$ 43.06 | |||||
| 24 | W10376137 | Air Diffuser Assy |
|
- | |||||
| 25 | WPW10348614 | Light Cover (Replaces: W10348614) |
|
$ 117.96 | |||||
| 26 | W10310927 | Air Diffuser Cup |
|
- | |||||
| 27 | WPW10339203 | Fitting, Tube Cover (Replaces: W10339203) |
|
$ 7.55 | |||||
| 28 | WP2210509 | Valve-tube, Body (Replaces: 2210509) |
|
$ 99.15 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | W10396926 | Tower Conn Assy |
|
$ 39.05 | |||||
| 31 | W10300161 | Shield, Light |
|
Immediately | $ 96.62 | ||||
| 32 | W10336009 | Screw Cup |
|
$ 77.40 | |||||
| 33 | WPW10383615 | Thermistor (Replaces: W10383615) |
|
Immediately | $ 47.51 |
