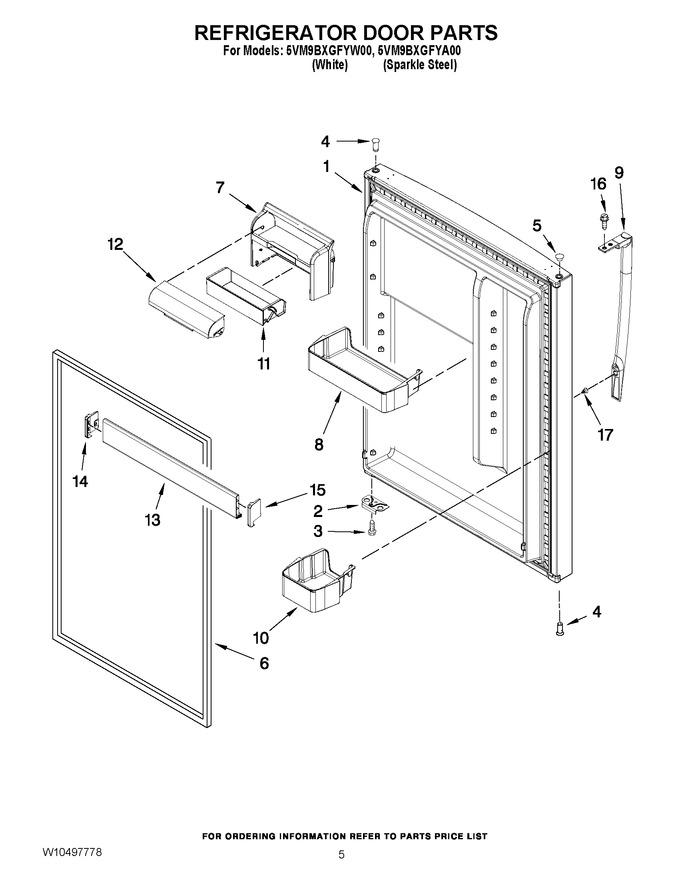

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Refrigerator Door Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10329581 | Refrigerator Door (includes Items 4, 5 & 6) (white) (Replaces: W10329581) |
|
$ 768.34 | |||||
| 1 | LW10462417 | Refrigerator Door (includes Items 4, 5 & 6) (sparkle Steel) (Replaces: W10462417) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2212648 | Plug Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 5 | WP2254517 | Plug, Hinge (apollo Grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 6 | 2159057 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 187.51 | ||||
| 6 | W11624977 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10279664) |
|
$ 370.52 | |||||
| 7 | W10308809 | Compartment, Utility |
|
$ 35.60 | |||||
| 8 | WPW10308868 | Bin, Large (Replaces: W10331763) |
|
Immediately | $ 89.09 | ||||
| 9 | W10370624 | Handle (sparkle) |
|
$ 38.22 | |||||
| 9 | W10838896 | Handle (white) (Replaces: W10366329) |
|
$ 69.17 | |||||
| 10 | WPW10308867 | Bin Short (Replaces: W10331762) |
|
$ 73.84 | |||||
| 11 | W10356444 | Bin, Tilt Out |
|
- | |||||
| 12 | WPW10308843 | Utility Flip Lid (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | W10308872 | Trim, Door Shelf |
|
- | |||||
| 14 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 15 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | WPW10288153 | Mounting Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 |
