New Model Search:

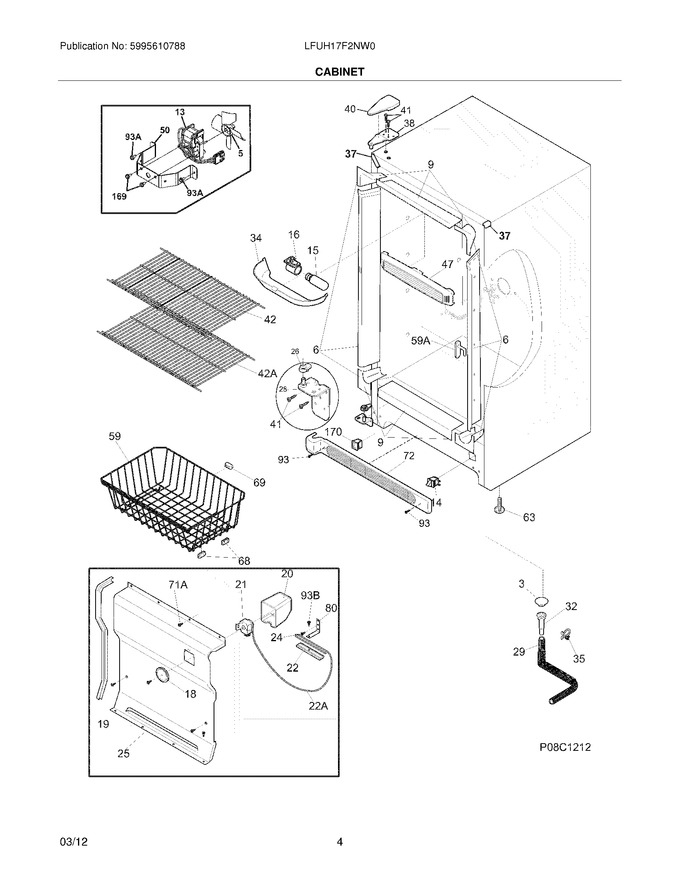

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 69.08 | |||||
| 6 | 297200600 | Breaker Kit W/corners,no Lock Slot |
|
$ 52.36 | |||||
| 9 | 297200100 | Breaker Kit W/corners,32`` ,top And Bottom |
|
$ 65.87 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp |
|
Immediately | $ 77.96 | ||||
| 15 | 5304517886 | Light Bulb,short ,blue Tint ,40w (Replaces: 297114000) |
|
Immediately | $ 81.18 | ||||
| 16 | 297139500 | Socket,light/lamp |
|
$ 20.09 | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 49.00 | |||||
| 19 | 216204902 | Gasket-evap Cover |
|
Immediately | $ 39.71 | ||||
| 20 | 216967201 | Cover,temp Control (Replaces: 216967200) |
|
$ 16.87 | |||||
| 21 | 5304513033 | Control- Temperature (Replaces: 216715200) |
|
Immediately | $ 92.38 | ||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5304460604 | Screw,type A ,10-24 X 3/8 |
|
- | |||||
| 25 | 297099250 | Cover-evaporator |
|
$ 111.25 | |||||
| 26 | 216503300 | Ramp,door Closer |
|
$ 9.80 | |||||
| 28 | 297283900 | Hinge-bottom,stepped Pin |
|
$ 60.25 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313503) |
|
Immediately | $ 17.67 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 15.27 | |||||
| 34 | 297184400 | Shield-light |
|
$ 21.16 | |||||
| 35 | 216273000 | Clip,wire Retainer |
|
$ 24.91 | |||||
| 37 | 297273904 | Trim-cabinet Corner,white ,(2) (Replaces: 297273900) |
|
$ 8.43 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297283800) |
|
Immediately | $ 21.69 | ||||
| 40 | 297164400 | Cover-hinge |
|
$ 14.06 | |||||
| 41 | 240578902 | Screw,hex Head ,1/4-20x5/8 ,hinge (Replaces: 297236250) |
|
Immediately | $ 15.75 | ||||
| 42 | 216458400 | Shelf,14.50x27.88 ,(3) |
|
- | |||||
| 47 | 297192903 | Baffle,air (Replaces: 297192900) |
|
Immediately | $ 28.12 | ||||
| 50 | 216394050 | Bracket,fan Motor Mount |
|
$ 25.28 | |||||
| 59 | 297344000 | Basket,bottom |
|
$ 102.06 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 42.65 | ||||
| 68 | 08009560 | Glide, Basket |
|
$ 39.17 | |||||
| 69 | 5305878546 | Bumper, Basket |
|
$ 8.03 | |||||
| 72 | 297036907 | Grille/kickplate,32`` ,white (Replaces: 297036900) |
|
$ 43.65 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 169 | 216912401 | Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) |
|
$ 14.18 | |||||
| 170 | 297280400 | Valve,breather |
|
$ 11.25 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 67.73 | |||||
| 42A | 297119501 | Shelf,12.50x27.88 ,white |
|
- | |||||
| 59A | 216486500 | Stop-basket,(2) |
|
$ 20.58 | |||||
| 71A | 297146820 | Screw,8-18ab X.470 Qx |
|
$ 7.33 | |||||
| 93A | 241500305 | Screw, Self Pierce,no.8 ,18x.63 (Replaces: 297174300) |
|
$ 3.37 | |||||
| 93B | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 15.17 | |||||
| F13 | 297309000 | Motor,fan ,115 V (Replaces: 297250000) |
|
Immediately | $ 61.47 | ||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 54.48 | ||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 65.73 | ||||
| NI | 297248200 | Ramp,door Closer ,lh |
|
$ 12.77 | |||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 18.48 | |||||
| NI | 297164650 | Bracket,lh Leg Levelor |
|
$ 18.43 | |||||
| NI | 297164651 | Bracket,rh Leg Levelor |
|
$ 17.51 | |||||
| NI | 30534600 | Clip,wire (Replaces: 5303313703) |
|
$ 4.21 | |||||
| NI | 297283901 | Hinge-bottom,stepped Pin ,lh |
|
$ 25.52 |
