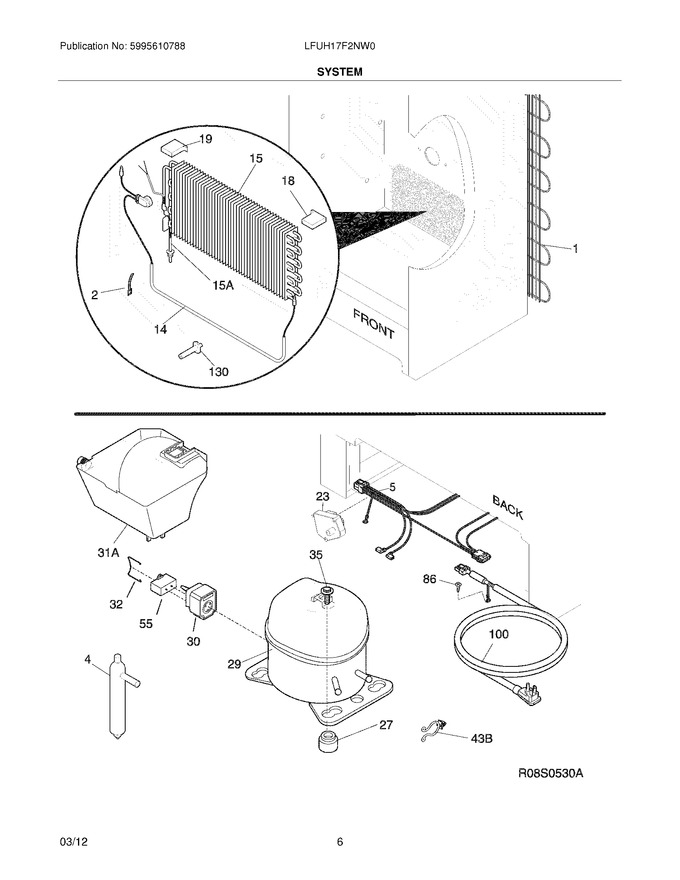

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
4	5303305677		Dryer-filter   (Replaces: 216987501)			Immediately	$ 35.19
18	297078701		Insulator-evap,styrofoam ,rh				$ 4.02
19	297078801		Insulator-evap,styrofoam ,lh				$ 4.02
27	216498900		Grommet,compressor   (Replaces: 297293302)				$ 14.46
30	241941003		Controller Tsd   (Replaces: 297237701)				$ 105.33
32	241982601		Clip,controller ,compressor				$ 10.63
35	297368500		Bolt,compressor		Appelez-nous	-
55	297286812		Capacitor-run,250 Va ,12 Mf   (Replaces: 297286802)			Immediately	$ 13.09
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 102.02
31A	216994102		Pan-drain   (Replaces: 216994100)				$ 33.92
43B	297315800		Clip,wire				$ 11.25
F1	5300083897		Condenser				$ 598.19
F100	297366805		Cord-power   (Replaces: 297169904)				$ 76.31
F14	5304496284		Defrost Heater,w/thermostat ,termination Swt   (Replaces: 297348700)			Immediately	$ 122.55
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 190.38
F23	5304518034		Timer Defrost 115v Tab   (Replaces: 297318010)			Immediately	$ 63.94
F29	5304500086		Compressor Egx70hlc   (Replaces: 297352151)				$ 507.94
F5	297170200		Harness-main				$ 86.81
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37
NI	216502500		Sleeve,suction Line				$ 12.05
NI	297014702		Plug-suction Line				$ 10.45
NI	297102800		Spacer-tube		Appelez-nous	-
NI	297355201		Guard-wire		Appelez-nous	-
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
