SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts

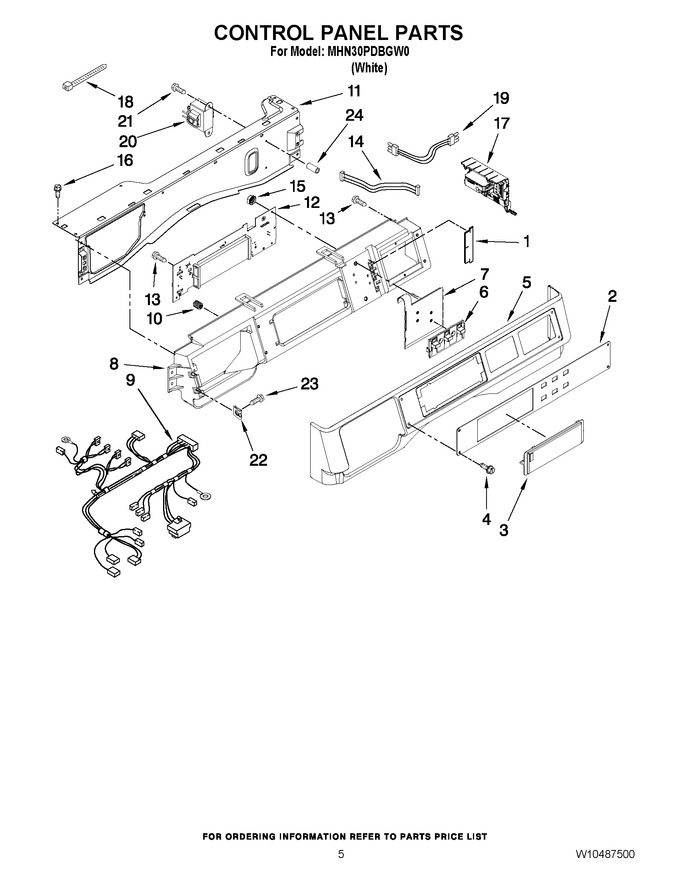

03 - Control Panel Parts


04 - Meter Case Parts


05 - Pump And Motor Parts


06 - Dispenser Parts


07 - Tub And Basket Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187276		Seal, Console		Appelez-nous	-
2	W10313105		Facia / Overlay		Appelez-nous	-
3	W11637765		Cover, Display   (Replaces: W10267645)				$ 62.63
4	WPW10137457		Screw   (Replaces: W10137457)				$ 7.07
5	W10779084		Console, Outer   (Replaces: W10137458)				$ 124.46
6	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 19.30
7	WPW10135255		Push Button & Switch Assembly   (Replaces: W10135255)				$ 197.47
8	W11028369		Console, Inner   (Replaces: W10137426)				$ 302.72
9	W10475275		Harness, Wiring (upper Main)		Appelez-nous	-
10	WPW10189313		Insert   (Replaces: W10189313)				$ 8.31
11	W10294428		Bracket, Console		Appelez-nous	-
12	WPW10311189		User Interface   (Replaces: W10311189)				$ 320.21
13	489136		Screw				$ 9.72
14	W10155150		Harness, Test				$ 3.02
15	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.31
16	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 10.34
17	W10475429		Microcomputer, Machine Control		Appelez-nous	-
18	WP2205813		Cable Tie   (Replaces: 3429563)				$ 7.30
19	W11700546		Harness, Wiring (console Uic)   (Replaces: W10330606)				$ 17.44
20	W10751202		Transformer, 240 To 22.5 Vac   (Replaces: W10205520)				$ 202.81
21	8540329		Screw		Appelez-nous	-
22	WP9781235		Nut, U-type   (Replaces: 9781235)				$ 11.30
23	WPW10131119		Screw   (Replaces: W10131119)				$ 6.57
24	W10018050		Caplug		Appelez-nous	-
NI	W10340898		Ccu To Hot Fill Valve (2 Pole)		Appelez-nous	-
NI	W10200793		Coin Drop To Ccu (4 Pole)		Appelez-nous	-
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
NI	W10340897		Ccu To Cold Fill Valve (4 Pole)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
