Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10171128 Meter Case   (Replaces: W10171128) Special Order $ 323.44

2 WPW10131838 Switch-vault & Service Door   (Replaces: W10131838) Special Order $ 22.60

3 W11204533 Bracket, Service Switch   (Replaces: W10133508) Appelez-nous -
4 WPW10139210 Screw   (Replaces: W10139210) Special Order $ 7.23

5 W10847806 Wire Harness, Sensor Switch   (Replaces: W10139456) Special Order $ 107.54

6 W11283272 Service Door Assembly   (Replaces: 3351136) Special Order $ 100.05

7 W11401086 Cam - Lock   (Replaces: W10145154) Special Order $ 6.17

8 W10137448 Cushion, Meter Case Appelez-nous -
9 W11715721 Screw   (Replaces: 3349065) Special Order $ 6.73

10 3347825 Plate, Meter Case Mounting Appelez-nous -
11 W10841059 Screw   (Replaces: 98445) Appelez-nous -
12 WPW10133264 Lock Assembly, Service Door (not Included With All Models)   (Replaces: W10133264) Special Order $ 131.37

13 WPW10140858 Key (not Included With All Models)   (Replaces: W10140858) In-Stock Immediately $ 20.88


    View Diagram in Separate Window     Print Icon   Print Part List

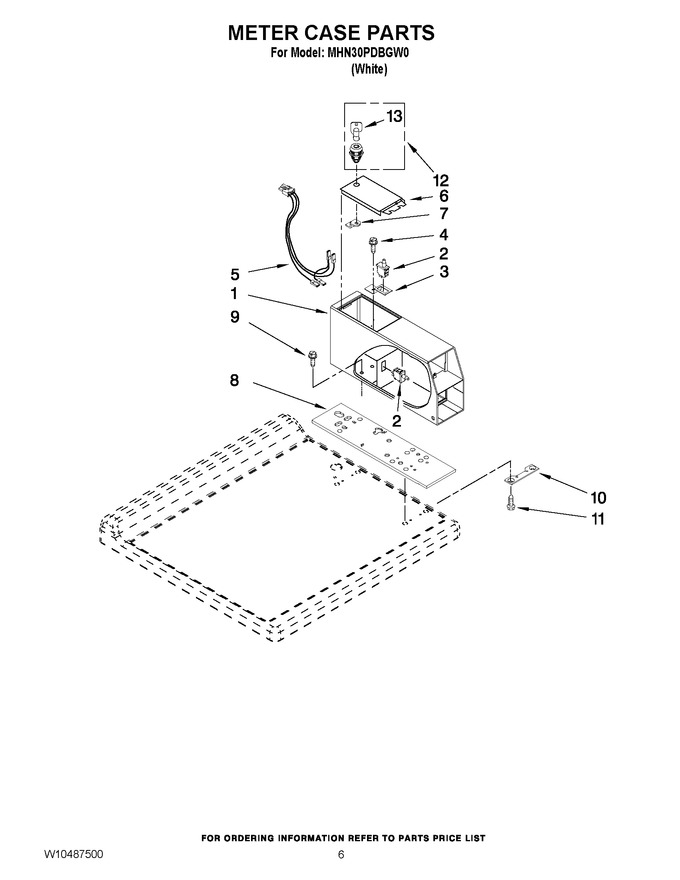

Diagram for MHN30PDBGW0
