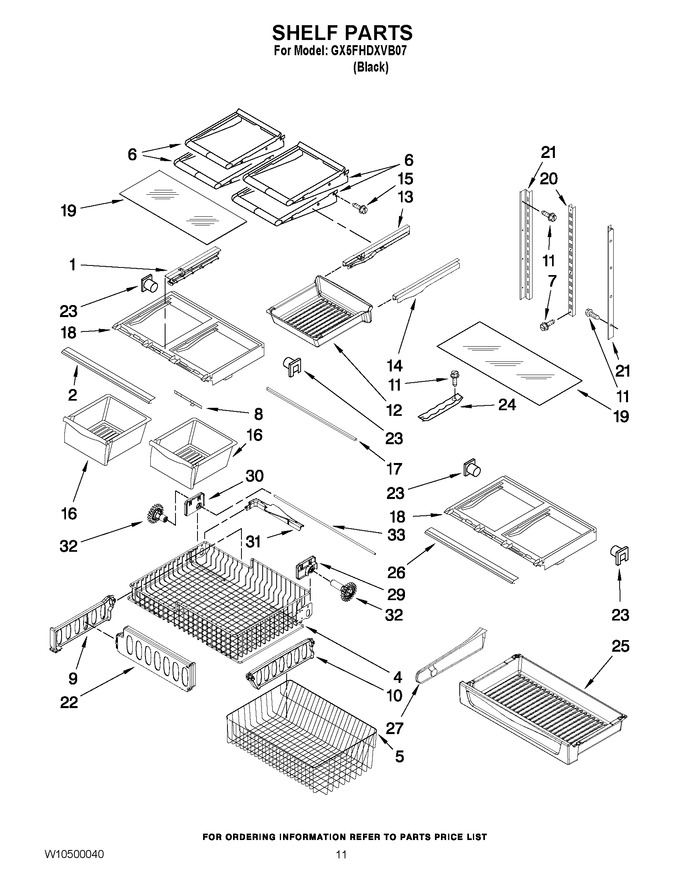

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: W10326469N) |
|
Immediately | $ 33.37 | ||||
| 2 | W10231508 | Trim, Crisper |
|
$ 93.57 | |||||
| 4 | WPW10348246 | Basket, Freezer (upper) (Replaces: W10348246) |
|
$ 274.97 | |||||
| 5 | W10150039N | Basket, Freezer (lower) |
|
- | |||||
| 6 | W10205737 | Shelf (4) (Replaces: 12654710) |
|
$ 304.16 | |||||
| 7 | W10215666 | Screw |
|
$ 9.53 | |||||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 10 | W10847995 | Divider, Basket (lower) (Replaces: W10146440N) |
|
$ 92.48 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | 12802801SP | Pan, Deli |
|
- | |||||
| 13 | WP67001054 | Glide, Left (Replaces: 12656601SP) |
|
Immediately | $ 8.82 | ||||
| 14 | WP67001053 | Glide, Right (Replaces: 12656602SP) |
|
Immediately | $ 9.24 | ||||
| 15 | W11233072 | Screw, Glide (4) (Replaces: 12990302SP) |
|
Immediately | $ 14.72 | ||||
| 16 | WP67004515 | Pan, Crisper (2) (Replaces: 12804601) |
|
Immediately | $ 176.72 | ||||
| 17 | WP12642303WD | Brace, Crisper (2) (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 18 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 226.44 | |||||
| 19 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824N) |
|
$ 212.77 | |||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 31.44 | |||||
| 22 | W10171558 | Divider, Upper Frz |
|
$ 42.49 | |||||
| 23 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 84.87 | |||||
| 24 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 25 | W10328323 | Drawer, Pantry |
|
$ 64.98 | |||||
| 26 | W10231507 | Trim, Pantry |
|
- | |||||
| 27 | 12707602 | Divider, Pantry |
|
- | |||||
| 29 | W10348260 | Mount, Rh Gear |
|
$ 89.90 | |||||
| 30 | W10348259 | Mount, Lh Gear |
|
$ 89.87 | |||||
| 31 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 92.66 | |||||
| 32 | WPW10474716 | Gear (left) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 32 | WPW10474715 | Gear (right) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 33 | W11173556 | Shaft, Rack (Replaces: 12812904WD) |
|
$ 32.38 |
