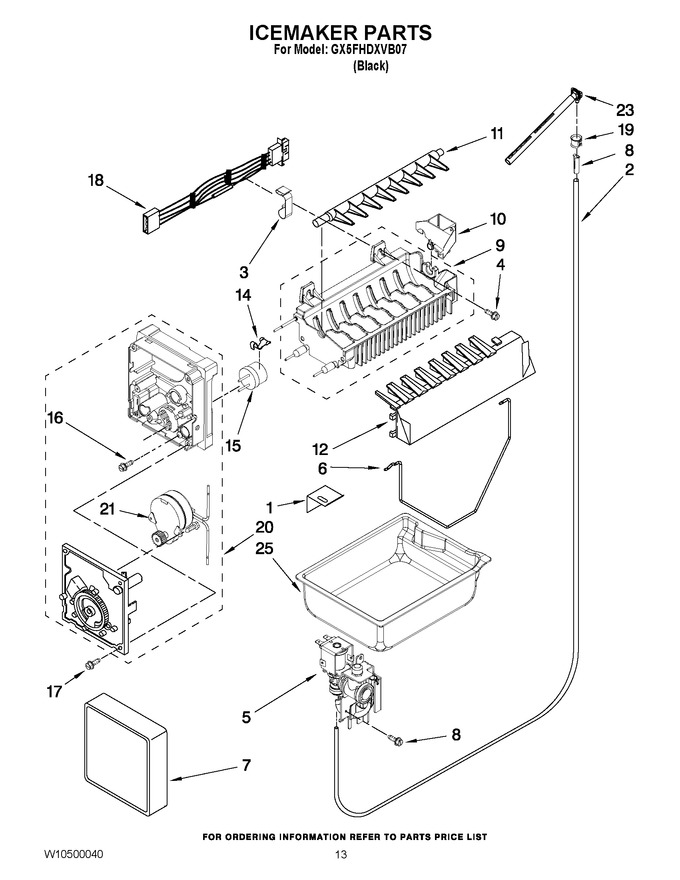

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 93.00 | |||||
| 2 | W11120581 | Tube, Plastic (Replaces: B5705333) |
|
$ 118.98 | |||||
| 3 | 10526702 | Clamp |
|
- | |||||
| 4 | W10001240 | Screw |
|
$ 8.78 | |||||
| 5 | WPW10498976 | Valve-inlet (Replaces: W10420082) |
|
Immediately | $ 126.10 | ||||
| 6 | WPW10378255 | Arm, Shutoff (Replaces: W10378255) |
|
$ 88.22 | |||||
| 7 | W10377174 | Cover, Front |
|
$ 77.46 | |||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 9 | WPW10300025 | Mold & Heater Assembly (also Order 542638) (Replaces: W10300025) |
|
Immediately | $ 192.30 | ||||
| 10 | W10410073 | Cup, Water Fill |
|
$ 80.07 | |||||
| 11 | W10318914 | Ejector |
|
$ 36.27 | |||||
| 12 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 94.69 | |||||
| 14 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 15 | WP627985 | Thermostat (order 542369 Cement Alumilastic) (Replaces: W10290336) |
|
$ 109.18 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | WPW10458985 | Harness, Icemaker (Replaces: W10404661) |
|
$ 106.05 | |||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 20 | WPW10281342 | Module Assembly (includes Items 21 & 22) (Replaces: W10281342) |
|
$ 267.12 | |||||
| 21 | N/P | Motor (not Available, Order No.20) |
|
- | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 114.15 | ||||
| 25 | WPW10171529 | Pan, Ice (Replaces: W10171529N) |
|
Immediately | $ 180.52 | ||||
| 100 | W10884390 | Complete Ice Maker (Replaces: W10469286) |
|
Immediately | $ 142.52 |
