SELECT A DIAGRAM

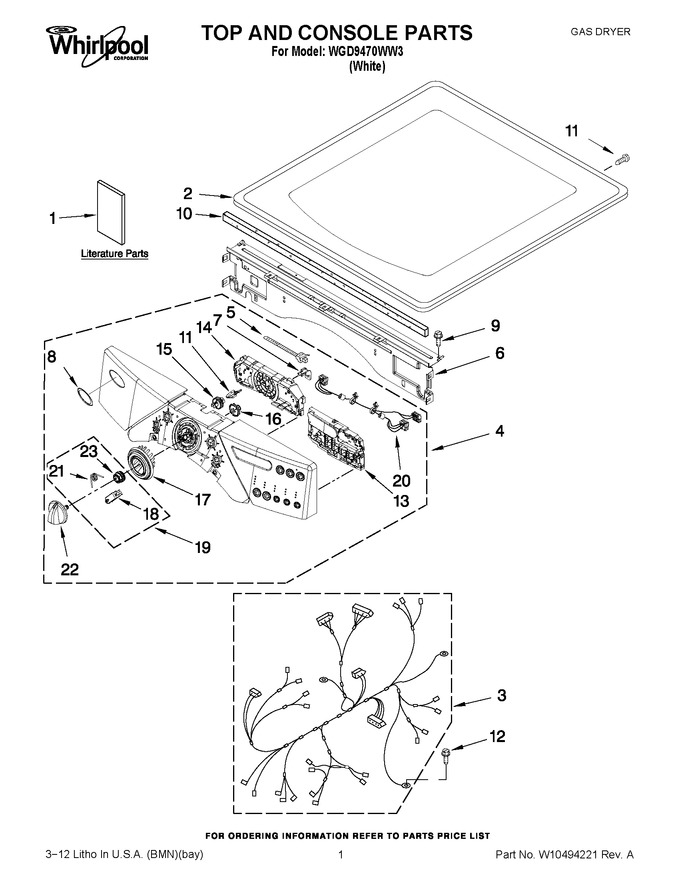

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10298850		Tech Sheet		Appelez-nous	-
1	W10471645		Installation Instructions		Appelez-nous	-
1	W10477028		Use & Care Guide		Appelez-nous	-
2	3980634		Top (white)		Appelez-nous	-
3	W10111069		Harness, Main				$ 273.58
4	W10255229		Panel, Console Assembly (white)				$ 393.71
5	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
6	W10215656		Bracket, Console (includes Item 12)				$ 72.06
7	W10112268		Clip, Harness		Appelez-nous	-
8	W10117943		Badge		Appelez-nous	-
9	WP489463		Screw, 8-18 X 1/2   (Replaces: 489463)				$ 8.25
10	W10112267		Foam-seal				$ 97.53
11	W10012480		Array-power   (Replaces: W10030070)				$ 17.15
12	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
13	W10279773		User Interface (right)				$ 262.92
14	W10279709		User-interface Center (includes Item 11)				$ 232.06
15	W10012430		Encoder-wheel				$ 21.85
16	W10012440		Retainer-snap				$ 12.36
17	W10250089		Knob, Light Ring (includes Item 16)				$ 13.46
18	W10006660		Rast, Wheel Assy. (service Only With Item. 19)		Appelez-nous	-
19	W10012480		Encoder Wheel Kit (includes Items 18,21 & 23)				$ 17.15
20	W10242906		Harness, Communication				$ 170.16
21	W10012820		Knob, Spring (service Only With Item. 19)		Appelez-nous	-
22	W10190685		Knob, Timer (includes Item 16)				$ 68.80
23	W10133763		Detent Wheel (service Only With Item. 19 )		Appelez-nous	-
