SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly

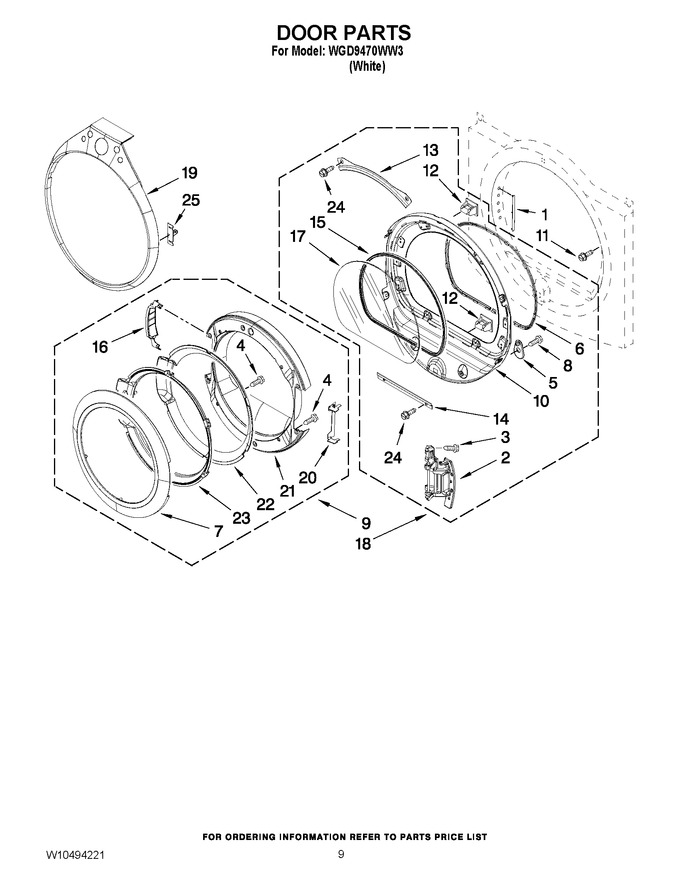

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10085230		Label, Hinge Hole   (Replaces: W10085230)				$ 22.95
2	WPW10310366		Door Hinge Assembly   (Replaces: W10310366)			Immediately	$ 258.42
3	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 8.52
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	W10048910		Screw-plug		Appelez-nous	-
6	WPW10139457		Seal-door   (Replaces: W10139457)				$ 134.28
7	W10193522		Handle, Ring Door				$ 196.17
8	3400224		Screw, 10-16 X 1/2				$ 5.27
9	W10193530		Door Assembly (outer)				$ 228.00
10	8578229		Inner Door (includes Item 12)				$ 75.57
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
13	8519356		Retainer-window (upper)		Appelez-nous	-
14	W10822054		Retainer-window (lower)   (Replaces: 8519354)			Immediately	$ 18.01
15	8579662		Gasket, Window				$ 106.25
16	W10180119		Cover-hinge				$ 35.43
17	8566254		Window				$ 127.75
18	8577819		Inner Door Assembly Complete		Appelez-nous	-
19	W10246600		Tear-drop Trim & Clip Assembly (includes Item 25) (white)				$ 140.01
20	W10180120		Door Shield				$ 50.86
21	W10180118		Door, Intermediate				$ 214.39
22	W10180117		Door Mask				$ 92.85
23	W10171571		Door Screen				$ 142.54
24	WP3373329		Screw, 10-16 X 3/8   (Replaces: 3393258)				$ 8.52
25	WPW10129065		Clip   (Replaces: W10129065)			Immediately	$ 12.24
