New Model Search:

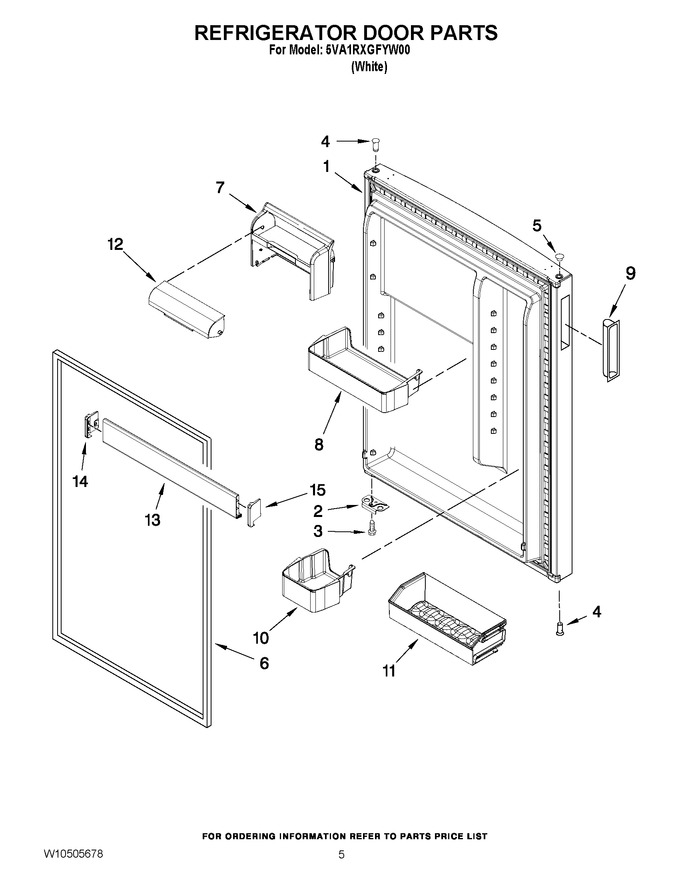

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10406231 | Refrigerator Door (includes Items 4, 5, 6 & 9) (Replaces: W10406231) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2212648 | Plug, Hinge (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159061 | Door Gasket, Magnetic (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 7 | W10308809 | Compartment, Utility |
|
$ 35.60 | |||||
| 8 | W10349246 | Bin, Large |
|
- | |||||
| 9 | W10352523 | Handle |
|
$ 25.20 | |||||
| 10 | W10349246 | Bin, Medium |
|
- | |||||
| 11 | W10395361 | Caddy, Can |
|
- | |||||
| 12 | WPW10308843 | Utility Flip Lid (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | WPW10469911 | Trim, Door Shelf (Replaces: W10308874) |
|
$ 104.53 | |||||
| 14 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 15 | W10308871 | Endcap Trim Rs |
|
$ 10.44 |
