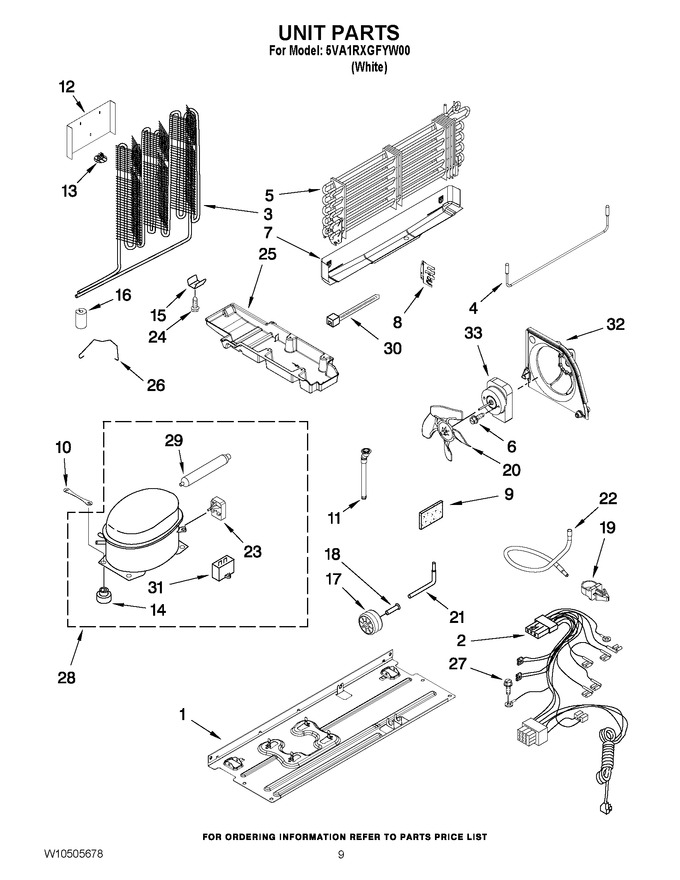

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11396825		Plate, Unit Mounting   (Replaces: W10300118)				$ 140.15
2	W10402413		Wire Assy, Unit		Appelez-nous	-
3	WPW10342567		Condenser   (Replaces: W10342567)				$ 278.20
4	W10405108		Heater, Defrost		Appelez-nous	-
5	WPW10314205		Evaporator Assy   (Replaces: W10314205)				$ 361.39
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	WPW10314195		Heat Shield   (Replaces: W10314195)				$ 101.34
8	W10314197		Bracket, Evap				$ 23.44
9	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
10	W10236396		Strap, Compressor			Immediately	$ 20.81
11	W11190084		Drain, Valve   (Replaces: W10316650)			Immediately	$ 65.56
12	W10349515		Cover, Condenser Bottom		Appelez-nous	-
13	W10296661		Clip, Bottom Cover				$ 17.78
14	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
15	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
16	W10852725		Condenser Grommet   (Replaces: 2319835)				$ 8.09
17	WPW10475495		Roller, Rear   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet, Axle   (Replaces: 2179826)			Immediately	$ 19.12
19	2219077		Clip, Harness				$ 64.24
20	WPW10139483		Fan Blade   (Replaces: W10139483)				$ 99.82
21	2154109		Tube, Process				$ 76.26
22	W10466682		Tube, Suction				$ 44.33
23	WP2312007		Start Device Combination Relay & Overload   (Replaces: 2312007)				$ 189.69
24	W11544659		Screw   (Replaces: 8281232)				$ 14.35
25	W10890667		Evaporator Tray   (Replaces: W10466213)				$ 151.95
26	2302129		Bale Strap		Appelez-nous	-
27	WP489128		Screw   (Replaces: 488500)				$ 11.40
28	W10183407		Compressor (includes Items 14, 23, 29 & 31) (also Order 876765 Tube Kit)   (Replaces: W10120455)				$ 435.61
29	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
30	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
31	2321245		Capacitor		Appelez-nous	-
32	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 87.99
33	WP2321271		Motor, Condenser   (Replaces: 2321271)				$ 325.47
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (4.00 Ozs. (r134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
