Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black, Left) Special Order $ 92.84

1 W10319111 Support, Backguard (black, Right) Special Order $ 43.80

1 W10319110 Support, Backguard (white, Left) Special Order $ 95.95

1 W10319112 Support, Backguard (white, Right) Special Order $ 93.79

2 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 14.72

3 W10097270 Console (white) Special Order $ 118.50

3 W10097310 Console (stainless) Special Order $ 116.84

3 W10097280 Console (black) Special Order $ 119.25

4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 18.60

5 W10878903 Electric, Control   (Replaces: W10365413) Special Order $ 444.14

6 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.55

7 W10297180 Assy., Membrane (incl. Bracket) (black) Appelez-nous -
7 W10321790 Assy., Membrane (incl. Bracket) (white) Special Order $ 321.89

7 W10297181 Assy., Membrane (incl. Bracket) (stainless) Special Order $ 268.09

8 W10278697 Shield, Vent In-Stock Immediately $ 183.33

9 W10296773 Cover, Backguard Cover Special Order $ 194.52

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 35.56


    View Diagram in Separate Window     Print Icon   Print Part List

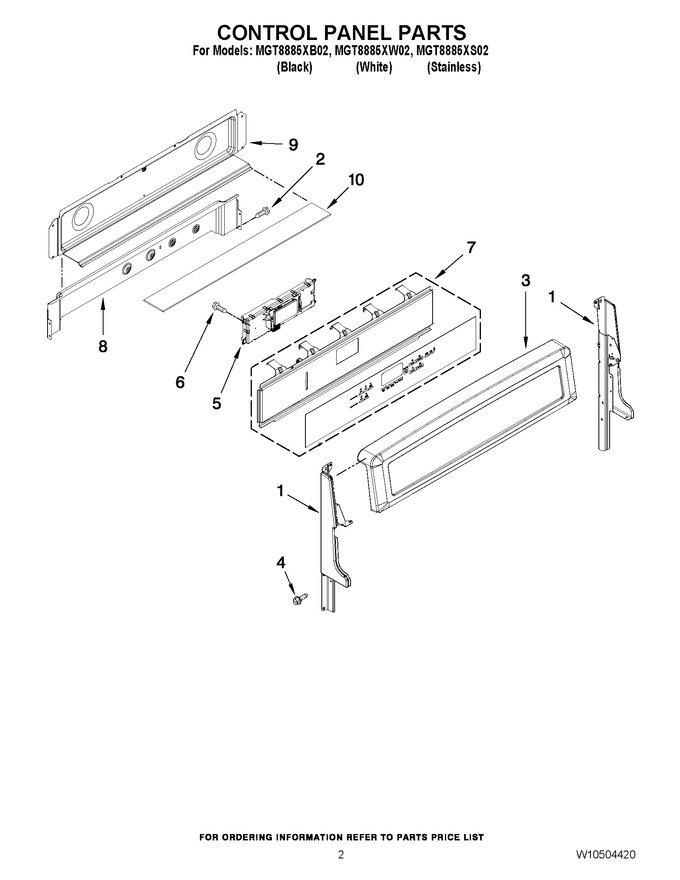

Diagram for MGT8885XS02
