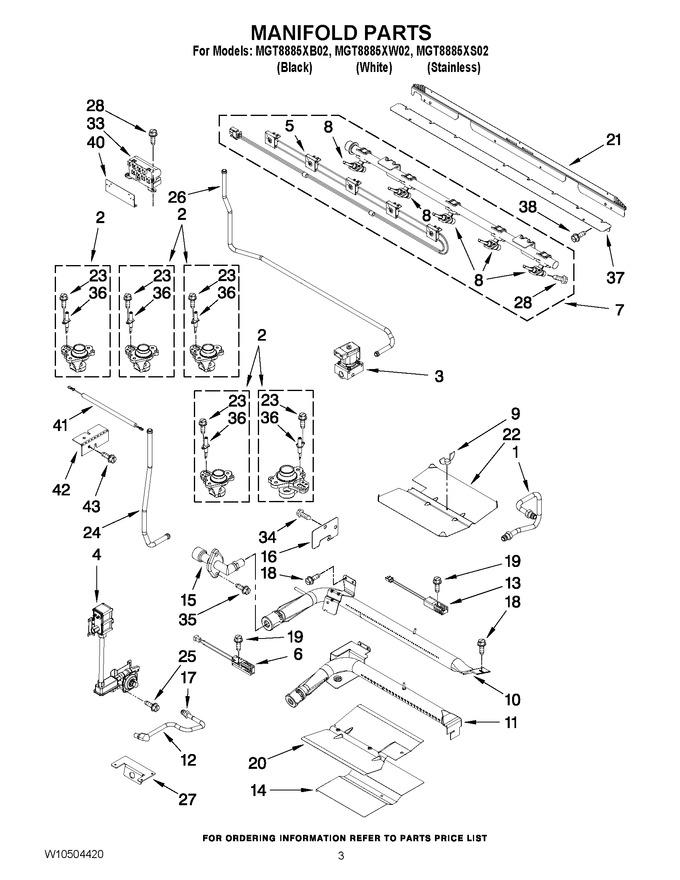

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319002		Tubing, Broil				$ 190.79
2	W10273141		Holder, Orifice (rf 10k)				$ 48.23
2	WPW10273139		Holder, Orifice (rr 5k)   (Replaces: W10273139)				$ 118.76
2	WPW10273135		Holder, Orifice (lr 5k)   (Replaces: W10273135)				$ 120.21
2	WPW10273133		Holder, Orifice (lf 16k)   (Replaces: W10273133)				$ 122.90
2	WPW10319347		Holder, Orifice (ctr 7k)   (Replaces: W10273137)				$ 114.74
3	9758382		Valve, Shut Off				$ 76.60
4	WPW10518493		Valve/regulator   (Replaces: W10293834)				$ 348.64
5	WPW10204718		Harness, Switch   (Replaces: W10204718)				$ 220.97
6	WPW10324738		Ignitor, Gas   (Replaces: W10324738)			Immediately	$ 329.05
7	WPW10204705		Assembly,pipe Manifold   (Replaces: W10204705)			Immediately	$ 331.88
8	WPW10206288		Valves (left & Right Front)   (Replaces: W10206288)			Immediately	$ 111.88
8	WPW10206287		Valves (left & Right Rear)   (Replaces: W10206287)			Immediately	$ 198.14
8	WPW10298678		Valves (center)   (Replaces: W10298678)			Immediately	$ 200.90
9	7103P030-60		Nut				$ 7.43
10	W11245221		Burner, Broiler   (Replaces: W10315768)				$ 222.29
11	W11174122		Burner, Bake   (Replaces: W10272526)				$ 213.50
12	W10342662		Orifice, Bake (upper)				$ 210.08
12	W10342661		Orifice, Bake (lower)				$ 199.64
13	W11596211		Ignitor, Bake   (Replaces: 7432P143-60)			Immediately	$ 93.36
14	W10298865		Shield, Bake		Appelez-nous	-
15	W10292293		Fitting, Broiler				$ 104.17
16	4005F421-45		Cover, Igniter		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 9.39
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
20	W10272528		Baffle, Bake				$ 294.68
21	WPW10276470		Bracket, Manifold Rr Cover   (Replaces: W10343062)				$ 89.33
22	3601F358-45		Baffle, Broil Burner				$ 254.66
23	WP4159193		Screw, Igniter   (Replaces: 7101P282-60)				$ 5.07
24	W10295050		Tubing (supply Regulator To Shutoff)				$ 192.26
25	W10828565		Screw   (Replaces: 7101P635-60)				$ 7.85
26	W10295055		Tubing (supply Shutoff To Manifold)				$ 207.20
27	W11756017		Bracket, Orifice   (Replaces: W10272520)		Appelez-nous	-
28	WPW10406797		Screw   (Replaces: 8286182)				$ 92.91
33	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 355.95
34	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
35	WP3387230		Screw, 10ab X .75   (Replaces: 7101P502-60)			Immediately	$ 8.54
36	WPW10407676		Ignito (all (except Fish))   (Replaces: W10407676)				$ 54.77
36	W10407677		Ignitor (fish Electrode)				$ 24.50
37	WPW10276466		Bracket, Manifold (bottom)   (Replaces: W10276466)				$ 108.19
38	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.55
40	W10319059		Bracket, Support (spark Module)		Appelez-nous	-
41	W10636384		Ext., Electrode   (Replaces: W10322044)				$ 140.05
42	W10324366		Holder, Electrode Ext.		Appelez-nous	-
43	W10217535		Screw (extension Holder)				$ 21.92
NI	W11674161		Kit, Lp Conversion   (Replaces: W10328517)				$ 115.66
NI	W10324646		Insulation, Orifice				$ 91.18
