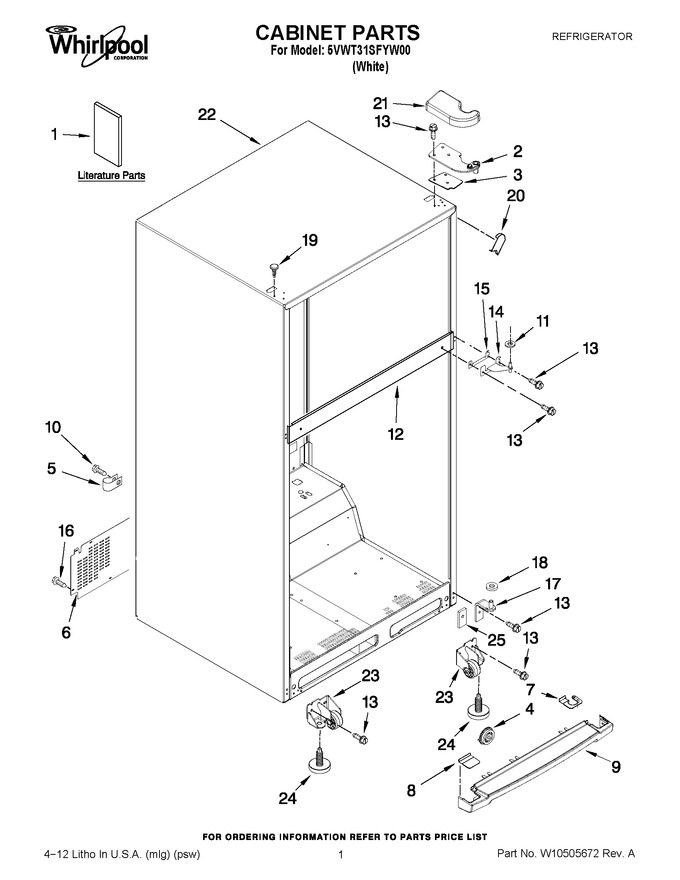

01 - Cabinet Parts
02 - Liner Parts
03 - Refrigerator Door Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469939 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10470600 | Wiring Sheet Arabian |
|
- | |||||
| 1 | W10461975 | Use & Care Guide |
|
- | |||||
| 2 | WPW10300065 | Hinge Assy, Top (left) (Replaces: W10337503) |
|
$ 13.94 | |||||
| 2 | WPW10300065 | Hinge Assy, Top (right) (Replaces: W10300065) |
|
$ 13.94 | |||||
| 3 | W10883637 | Hinge Shim, Top (Replaces: W10338247) |
|
$ 15.95 | |||||
| 4 | W10331226 | Drum, Toe Grille |
|
$ 47.42 | |||||
| 5 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 6 | W10425028 | Cover, Unit |
|
- | |||||
| 7 | W10381059 | Cover, Toe Grille (hinge Side) |
|
$ 87.57 | |||||
| 8 | WPW10339257 | Cover, Toe Grille (Replaces: W10339257) |
|
$ 85.42 | |||||
| 9 | WPW10300129 | Toe Grille (Replaces: W10300129) |
|
$ 109.55 | |||||
| 10 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 11 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 12 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 14 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 15 | WP2183852 | Hinge Shim, Cener (Replaces: 2183852) |
|
$ 11.18 | |||||
| 16 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 17 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 18 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 19 | WP2151652 | Hole Plug (Replaces: 2201012) |
|
$ 22.87 | |||||
| 20 | WPW10283959 | Filler, Corner (Replaces: W10283959) |
|
$ 8.21 | |||||
| 21 | W10331654 | Cover, Hinge (white Ls) |
|
- | |||||
| 21 | W10331560A | Cover, Hinge (white Rs) (Replaces: W10331560) |
|
$ 13.44 | |||||
| 22 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 23 | WPW10359255 | Roller Assy, Front (right) (Replaces: W10359255) |
|
Immediately | $ 100.64 | ||||
| 23 | WPW10359256 | Roller Assy, Front (left) (Replaces: W10359256) |
|
Immediately | $ 51.83 | ||||
| 24 | WPW10141622 | Brake, Front Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 25 | W10474788 | Shim, Front Roller |
|
- |
