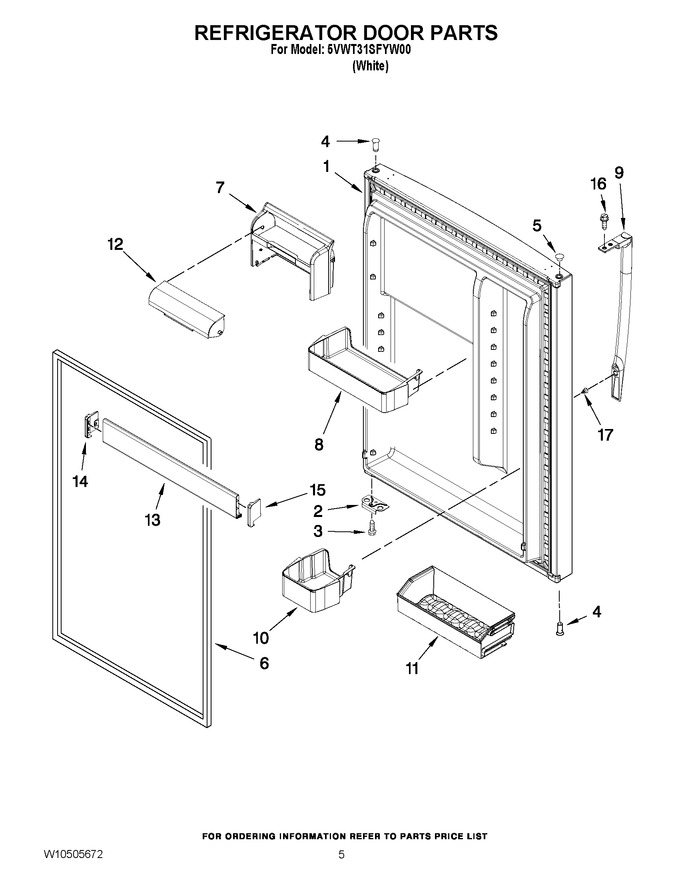

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10406239 | Refrigerator Door (includes Items 4, 5 & 6) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2212648 | Plug, Hinge (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159061 | Door Gasket, Magnetic (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 7 | W10308809 | Compartment, Utility |
|
$ 35.60 | |||||
| 8 | WPW10308868 | Bin, Large (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | W11178521 | Handle (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 10 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 11 | W10308845 | Caddy, Can |
|
$ 40.40 | |||||
| 12 | WPW10308843 | Utility Flip Lid (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | WPW10469911 | Trim, Door Shelf (Replaces: W10308874) |
|
$ 104.53 | |||||
| 14 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 15 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | WPW10170540 | Mounting Screw (Replaces: W10170540) |
|
Immediately | $ 9.66 |
