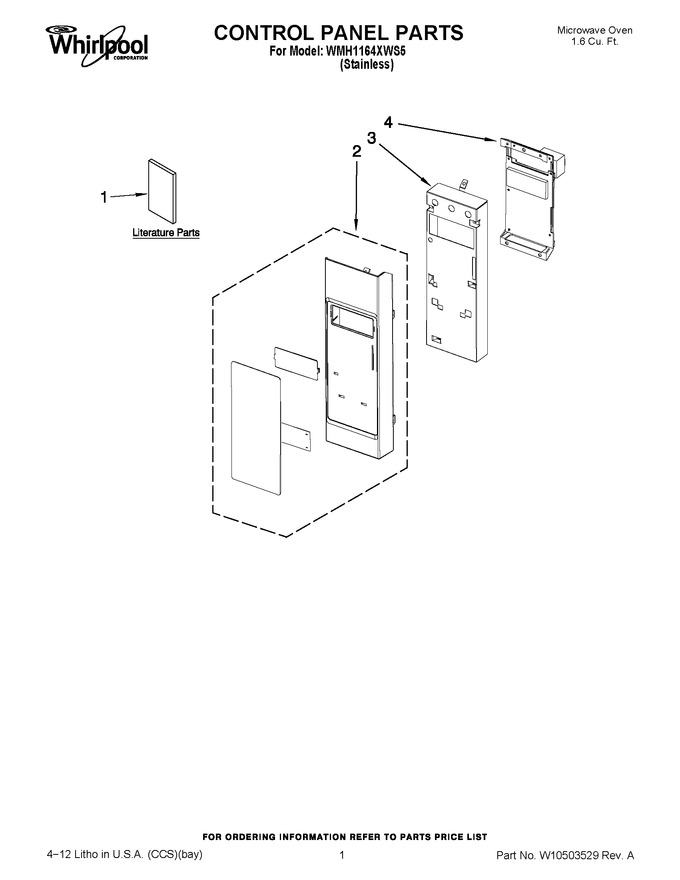

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10182518 | U & C Guide |
|
- | |||||
| 1 | W10387177 | Tech Sheet |
|
- | |||||
| 1 | W10292071 | Cook Guide Label |
|
- | |||||
| 1 | W10247296 | Install,instruct. |
|
- | |||||
| 2 | W10449620 | Panel Asy, Control Includes Lens And Membrane Switch |
|
- | |||||
| 3 | W10364232 | Bracket, Control |
|
- | |||||
| 4 | W10446042 | Microcomputer |
|
- |
