01 - Control Panel Parts


02 - Door Parts

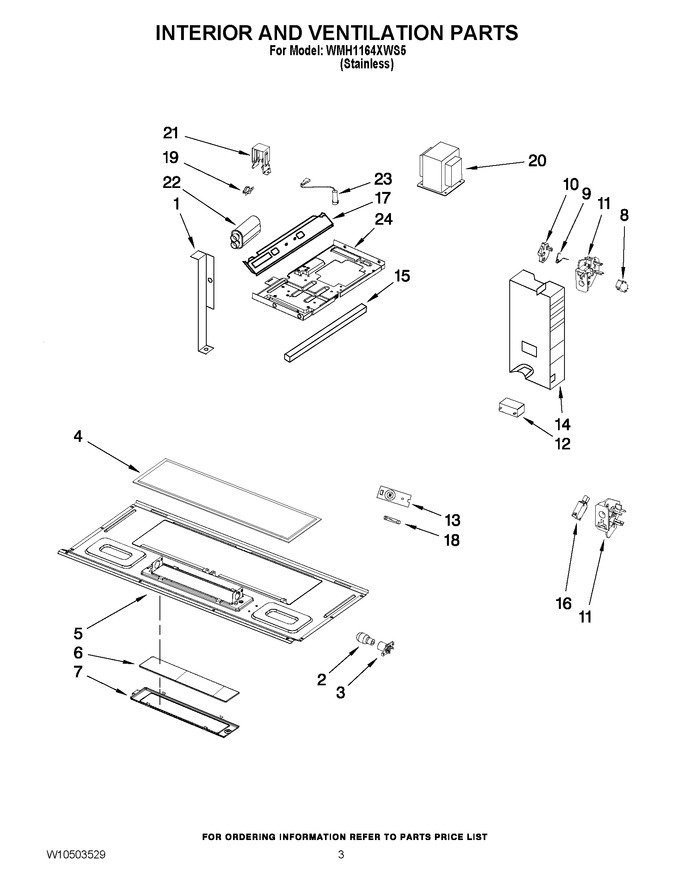

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top				$ 35.62
2	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 7.71
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 257.07
6	WPW10210875		Glass, Lamp   (Replaces: W10210875)				$ 350.94
7	W10210873		Holder, Glass				$ 5.75
8	W10269458		Switch, Micro V15t16-cc200			Immediately	$ 40.11
9	W10156812		Spring, Interlock			Immediately	$ 12.14
10	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
11	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
12	W11405832		Capacitor, 125 V   (Replaces: W10210855)				$ 28.60
13	W10163422		Thermistor (pcba)				$ 179.70
14	W10313268		Plate, Side		Appelez-nous	-
15	W11523261		Cushion, Ntc   (Replaces: W10313276)		Appelez-nous	-
16	W10269460		Switch, Micro V15t16-cp200			Immediately	$ 45.95
17	W10315759		Support, Ntc				$ 105.07
18	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
19	W10269232		Thermostat				$ 74.28
20	W10349882		Transformer, H.v.				$ 240.56
21	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 29.69
22	W10850446		Capacitor, H.v.   (Replaces: W10138798)				$ 195.87
23	W11256462		Diode, H.v.   (Replaces: W10163432)			Immediately	$ 34.86
24	W10269456		Chassis				$ 82.02
