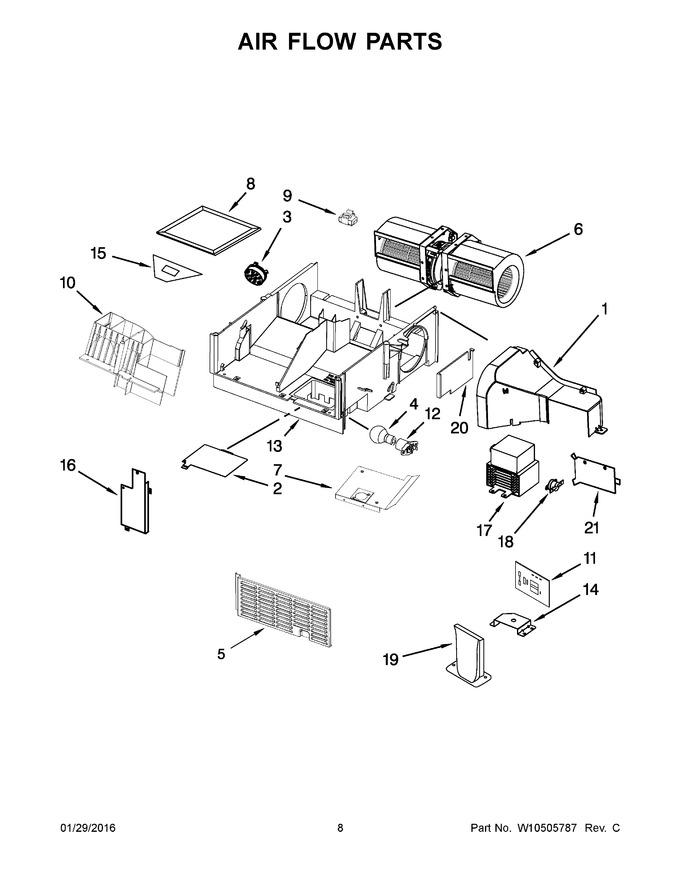

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10471570		Deflector, Air		Appelez-nous	-
2	8206382		Cover, Lamp				$ 9.17
3	8206626		Sensor, Humidity				$ 84.84
4	8206232A		Lamp, Cavity 30 Watt   (Replaces: 4393681)			Immediately	$ 7.71
5	W10342991		Plate, Finger Shield   (Replaces: W10269466)				$ 169.83
6	W10440506		Motor, Hood Fan Blower		Appelez-nous	-
7	W10247762		Air Guide		Appelez-nous	-
8	8206230A		Filter, Charcoal   (Replaces: 8206230)			Immediately	$ 20.21
9	W10110862		Mounting Nut		Appelez-nous	-
10	WPW10448768		Air Guide, Sealing Plate   (Replaces: W10448768)				$ 17.55
11	W10422269		Filter, Noise			Immediately	$ 33.79
12	WPW10210878		Holder, Lamp Cavity   (Replaces: W10210878)			Immediately	$ 34.87
13	W10448773		Base Plate, Air Guide				$ 148.07
14	W10532064		Bracket, Mounting Filter Board   (Replaces: W10313270)		Appelez-nous	-
15	W10139750		Socket, Motor Wire		Appelez-nous	-
16	W10247764		Cover, Cavity Air Guide Inlet		Appelez-nous	-
17	W10754299		Magnetron   (Replaces: W10496310)			Immediately	$ 231.21
18	W10598693		Thermostat, Magnetron   (Replaces: 8206342)				$ 65.26
19	W11381953		Seal, Waterproof   (Replaces: W10269467)		Appelez-nous	-
20	W10269469		Cover, Right Duct				$ 83.08
21	W10313274		Bracket, Noise Filter				$ 32.32
