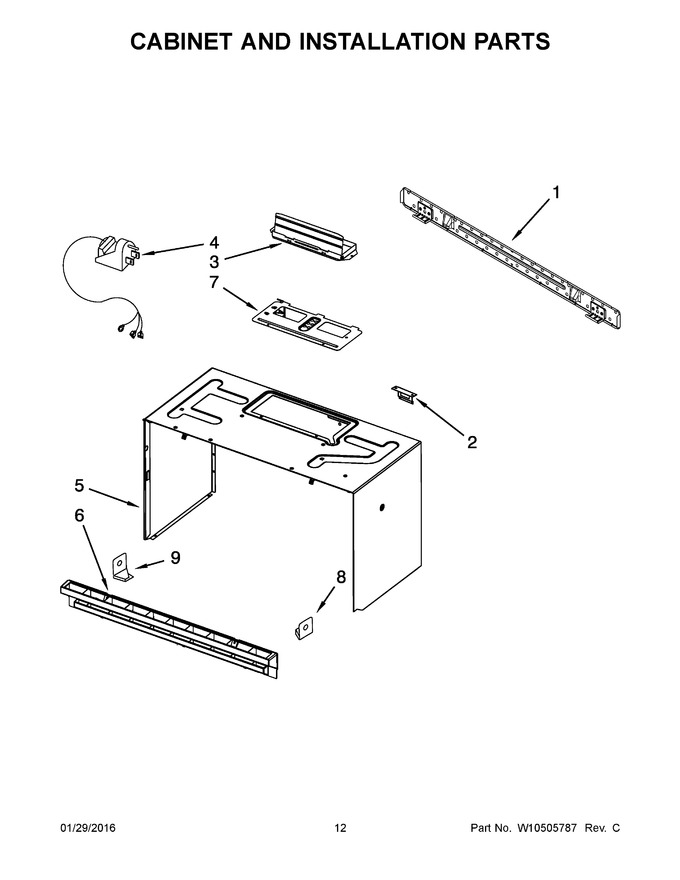

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	8206385		Support, Wire Clip				$ 37.20
3	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 73.04
4	W10708076		Cord, Power   (Replaces: W10269470)				$ 21.56
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 291.92
6	W10245217		Grille, Vent (white)				$ 105.98
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10703282		Holder, Vent Right Side (white)   (Replaces: W10393276)				$ 11.00
9	W11026306		Holder, Vent Left Side (white)   (Replaces: W10393278)			Immediately	$ 7.55
5A	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 297.51
5B	W10461999		Case, Outer (biscuit)		Appelez-nous	-
6A	W10245218		Grille, Vent (black)				$ 104.95
6B	W10247768		Grille, Vent (biscuit)		Appelez-nous	-
8A	W10810989		Holder, Vent Right Side (black)   (Replaces: W10406307)				$ 10.22
9A	W10830163		Holder, Vent Left Side (black)   (Replaces: W10406308)				$ 14.21
NI	8205948		Miscellaneous Parts, Hardware, Installation				$ 26.90
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 7.55
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10333875		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10539841		Miscellaneous Parts, Headlamp/tt Wire Assembly   (Replaces: W10269479)				$ 20.98
NI	W10539842		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer   (Replaces: W10163436)				$ 16.70
NI	W10470168		Miscellaneous Parts, Harness Wire, Ntc   (Replaces: W10163439)				$ 42.74
