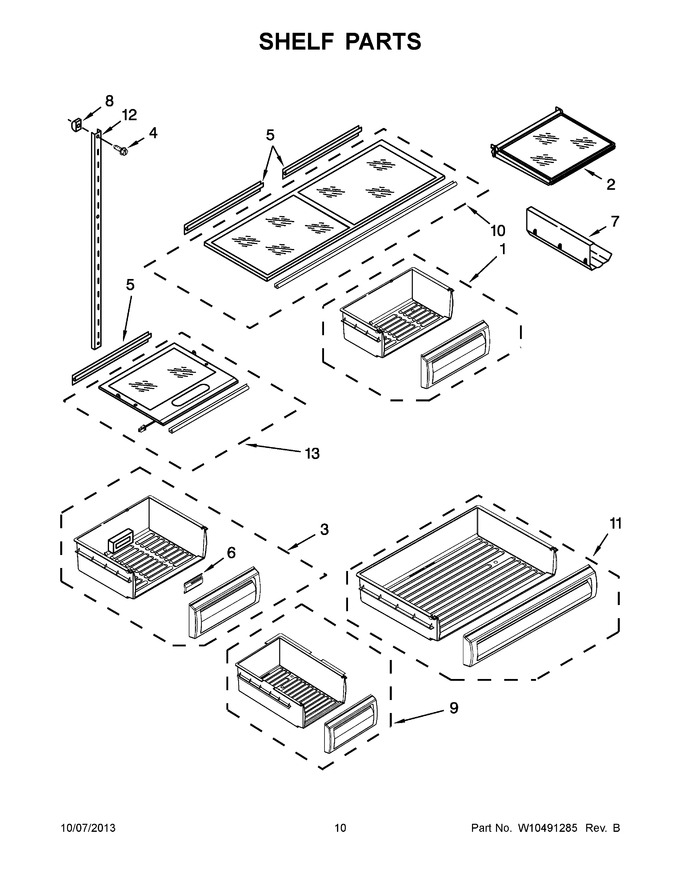

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407630		Assembly, Crisper Pan (right Hand)		Appelez-nous	-
1	W10407631		Assembly, Crisper Pan (left Hand)				$ 87.13
2	2268246		Shelf				$ 174.09
3	W10407633		Assembly, Deli Pan (right Hand)				$ 95.83
3	W10407635		Assembly, Deli Pan (left Hand)				$ 80.70
4	2006475		Screw (white)		Appelez-nous	-
5	2309400		Gasket, Rear		Appelez-nous	-
6	2317939		Deflector, Air		Appelez-nous	-
7	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
8	520965		Support, Ladder				$ 31.35
9	2306174		Assembly, Ice Pan				$ 147.41
10	W11430640		Cover, Crisper   (Replaces: 2309045)				$ 342.71
11	2327511		Assembly, Freezer Pan		Appelez-nous	-
12	2327314		Ladder, Shelf		Appelez-nous	-
13	W10757993		Cover, Deli Bin (right Hand)   (Replaces: 2320667)				$ 852.43
13	W10757973		Cover, Deli Bin (left Hand)   (Replaces: 2320665)				$ 808.62
