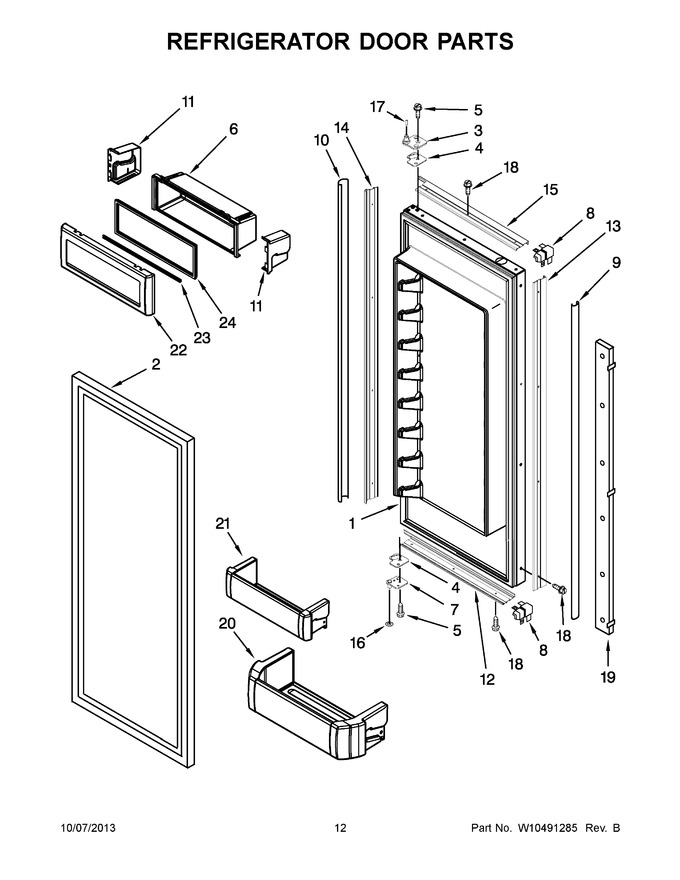

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192510 | Door, Refrigerator (includes Item 2) (left Hand) |
|
- | |||||
| 1 | W10192508 | Door, Refrigerator (includes Item 2) (right Hand) |
|
- | |||||
| 2 | 8201809 | Gasket, Door (Replaces: 2268265) |
|
Immediately | $ 246.99 | ||||
| 3 | W11673500 | Assembly, Top Hinge (Replaces: 2320642) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | WPW10323035 | Bin, Utility Center (Replaces: W10323035) |
|
$ 84.93 | |||||
| 7 | W10273369 | Assembly, Bottom Hinge (left Hand) |
|
$ 41.21 | |||||
| 7 | W10273367 | Assembly, Bottom Hinge (right Hand) |
|
$ 41.27 | |||||
| 8 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 9 | 2309021S | Cover, Side Trim (handle Side) |
|
$ 96.86 | |||||
| 10 | 2309022S | Cover, Side Trim (hinge Side) |
|
$ 118.89 | |||||
| 11 | WPW10323172 | Utility Bin Endcap (right Hand) (Replaces: W10323172) |
|
$ 8.60 | |||||
| 11 | WPW10323173 | Utility Bin Endcap (left Hand) (Replaces: W10323173) |
|
$ 8.60 | |||||
| 12 | 2314031S | Trim, Bottom Door |
|
$ 261.52 | |||||
| 13 | 2314030S | Trim, Side Door (handle Side) |
|
$ 279.02 | |||||
| 14 | 2309031S | Trim, Side Door (hinge Side) |
|
$ 402.43 | |||||
| 15 | 2314028S | Trim, Top Door |
|
$ 266.68 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | W11500952 | Bushing, Top Hinge (Replaces: 2316760) |
|
Immediately | $ 34.74 | ||||
| 18 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 19 | 2307938 | Assembly, Mullion |
|
$ 144.52 | |||||
| 20 | W10323746 | Bin, Gallon Door |
|
$ 108.24 | |||||
| 21 | W10323598 | Bin, Door |
|
$ 104.79 | |||||
| 22 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 75.81 | |||||
| 23 | 2222795 | Rail, Utility Lid |
|
$ 84.11 | |||||
| 24 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 214.40 |
