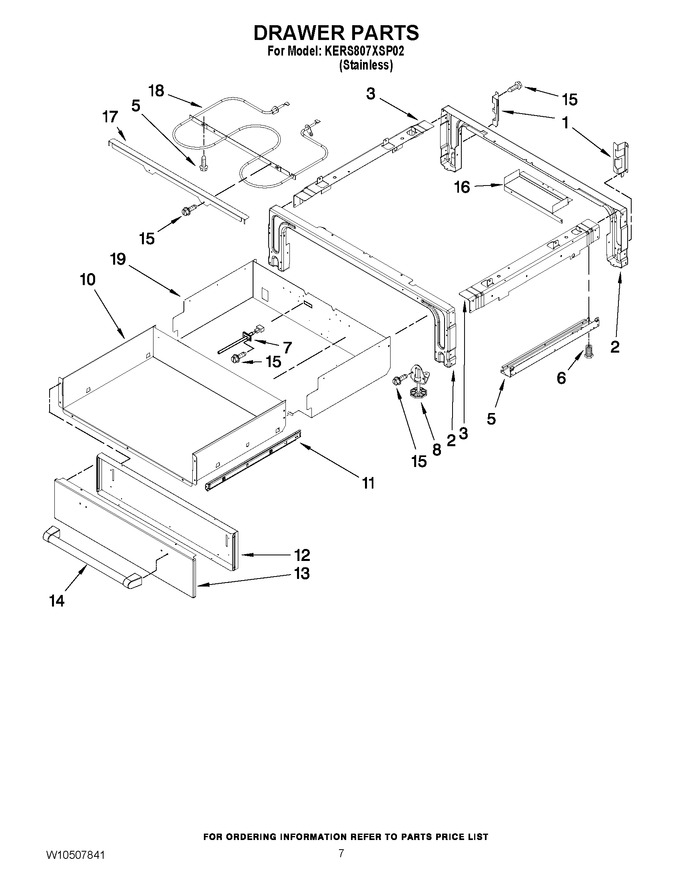

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9757687		Support, Drawer Rail (right)				$ 38.36
1	9757686		Support, Drawer Rail (left)				$ 38.48
2	9763501BL		Support, Front & Rear				$ 43.72
3	4453720		Brace, Drawer (right)				$ 34.27
3	4453721		Brace, Drawer (left)				$ 34.27
5	9759954		Side, Base (left)				$ 88.47
5	9759953		Side, Base (right)				$ 108.70
6	WPW10058460		Foot   (Replaces: W10058460)			Immediately	$ 8.24
7	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 192.05
8	WP3196037		Foot Assembly   (Replaces: 3196037)				$ 87.12
10	W10164163		Drawer				$ 163.91
11	WPW10155632		Drawer Slide (left)   (Replaces: W10155632)				$ 108.71
11	W10155633		Drawer Slide (right)				$ 60.39
12	W10164169		Panel, Drawer		Appelez-nous	-
13	W10246103		Front, Drawer		Appelez-nous	-
14	W10246102A		Handle, Drawer   (Replaces: W10246102)		Appelez-nous	-
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
16	W10153100		Cover, Terminal		Appelez-nous	-
17	9758676		Support, Element		Appelez-nous	-
18	W10207401		Element, Warming Drawer				$ 105.28
19	9763518		Enclosure, Warming Drawer				$ 59.87
