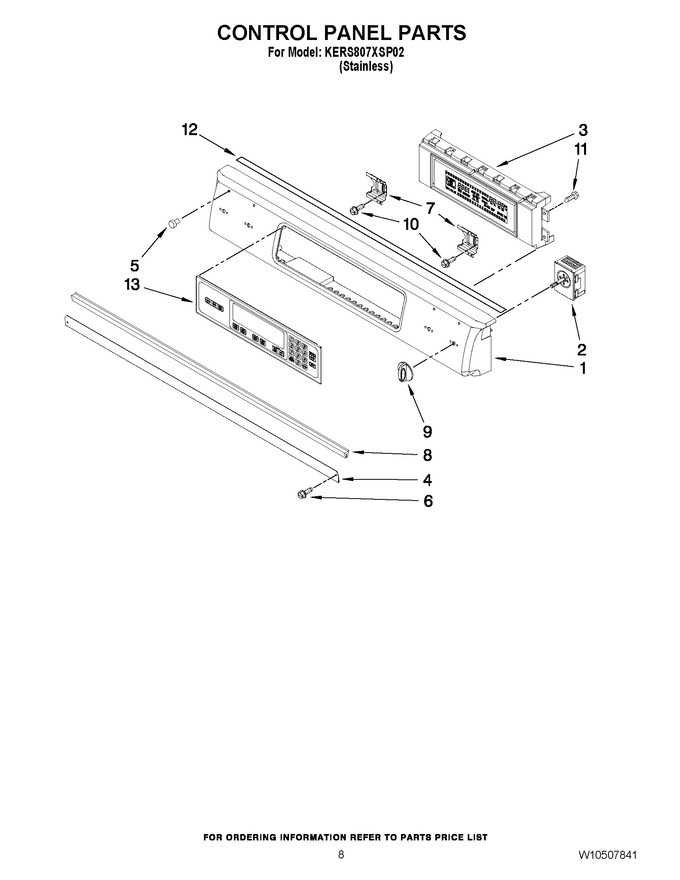

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156268 | Control Panel |
|
$ 175.92 | |||||
| 2 | WP9763761 | Switch, Infinite (rf) (Replaces: 9763761) |
|
Immediately | $ 218.61 | ||||
| 2 | WP9763762 | Switch, Infinite (lr,lf,rr) (Replaces: 9763762) |
|
Immediately | $ 226.29 | ||||
| 3 | W10181439 | Control, Electric |
|
$ 483.37 | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | WP3196068 | Lens, Indictor (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 6 | WP3179559 | Screw (Replaces: 3179559) |
|
$ 71.54 | |||||
| 7 | 9761745 | Bracket, Thermostat |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| 9 | W10246106 | Knob (lr,lf,rr) |
|
$ 51.28 | |||||
| 9 | W10246107 | Knob (rf) |
|
$ 42.58 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 11 | 9780271 | Screw |
|
- | |||||
| 12 | W10109430 | Gasket, Console |
|
$ 63.07 | |||||
| 13 | WP9761566 | Membrane, Switch (Replaces: 9761566) |
|
Immediately | $ 450.25 |
