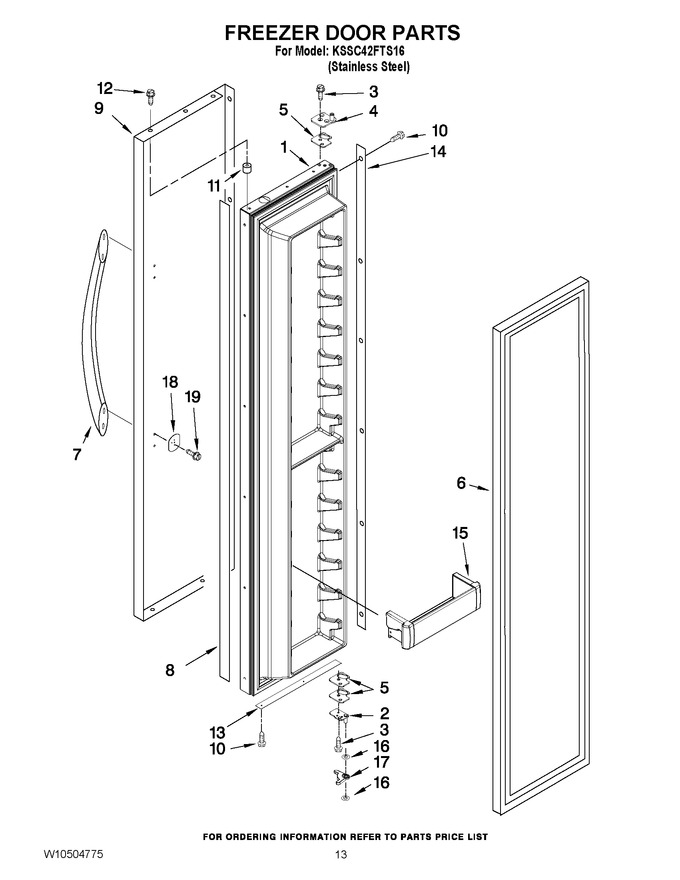

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193486		Freezer Door (includes Item 6)		Appelez-nous	-
2	W11752085		Hinge Assembly, Bottom   (Replaces: 2302879)				$ 63.07
3	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
4	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
5	W11673500		Spacer, Hinge   (Replaces: 2316804)			Immediately	$ 108.07
6	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
7	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 281.43
8	2309060		Spacer Assy, Door (handle Side)		Appelez-nous	-
9	2307756		Skin, Door		Appelez-nous	-
10	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
11	2005433		Spacer, Door Skin (top)				$ 23.33
12	W10759522		Screw   (Replaces: 488568)				$ 8.24
13	2004932		Spacer, Door Skin (bottom)		Appelez-nous	-
14	W10142296		Spacer Assy, Door (hinge Side)		Appelez-nous	-
15	W10323602		Bin, Door				$ 98.03
16	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.76
17	2006342		Gap Cover, Bottom		Appelez-nous	-
18	W10127710		Plate, Door Handle			Immediately	$ 25.94
19	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
