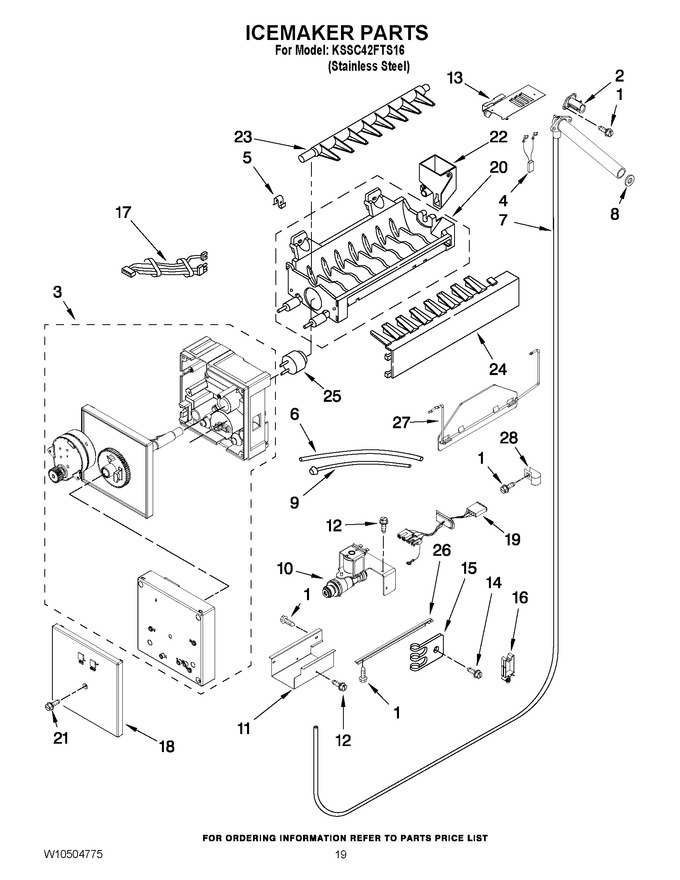

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 206.58 | |||||
| 3 | WPW10281342 | Module Assembly (Replaces: W10281342) |
|
$ 280.48 | |||||
| 4 | 2310108 | Jumper, Heater Fill Tube |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 67.89 | |||||
| 7 | W11662302 | Tube Assembly, Water Inlet (Replaces: 2314049) |
|
- | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 33.15 | ||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 203.52 | ||||
| 11 | W10129653 | Shield, Valve |
|
- | |||||
| 12 | 00487294 | Screw (Replaces: 487294) |
|
$ 175.09 | |||||
| 13 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 89.33 | |||||
| 14 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 15 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 16 | W10129069 | Clip, Tube |
|
- | |||||
| 17 | W10377187 | Wire Assembly, Ice Maker |
|
- | |||||
| 18 | W10377174 | Cover |
|
$ 81.33 | |||||
| 19 | W10279393 | Wire Assembly, Water Valve |
|
$ 157.07 | |||||
| 20 | WPW10190929 | Mold & Heater(also Order 542638silicone Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 21 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 22 | WPW10372171 | Cup, Water Fill (Replaces: W10372171) |
|
$ 80.93 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 25 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 114.64 | |||||
| 26 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 27 | W10372199 | Shut Off Arm Assembly |
|
- | |||||
| 28 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 11.54 | |||||
| 100 | W10435673 | Complete Icemaker Assembly |
|
- | |||||
| NI | W10355010 | Affresh Kitchen Appliance Cleaner |
|
- | |||||
| NI | W10355016 | Affresh Stainless Steel Cleaner |
|
- | |||||
| NI | W10355049 | Affresh Stainless Steel Wipes |
|
$ 7.91 |
