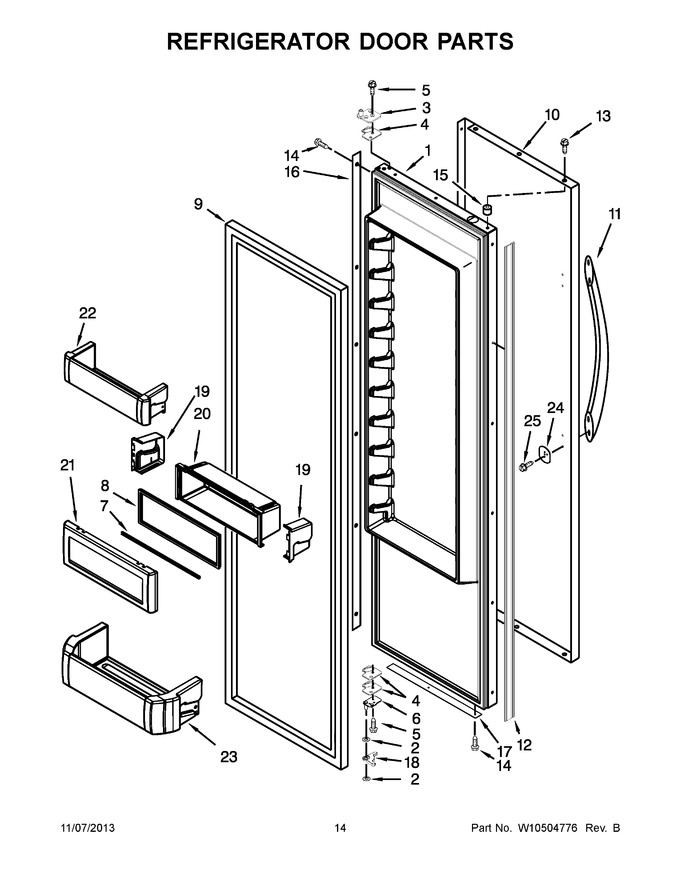

KSSC48FTS16 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10193491	Assembly, Refrigerator Door	Appelez-nous	-
2	WP2006346	Washer, Extension Arm (Replaces: 2006346)		Immediately	$ 11.76
3	W11724512	Assembly, Top Hinge (Replaces: 2266854)			$ 312.50
4	W11673500	Spacer, Door Hinge Bottom (Replaces: 2316804)		Immediately	$ 130.37
5	W11474472	Screw (Replaces: W10162602)		Immediately	$ 8.63
6	2302878	Assembly, Bottom Hinge		Immediately	$ 91.01
7	W11348580	Rail, Lid (Replaces: 2222797)		Immediately	$ 181.10
8	W11348580	Gasket, Utility Bin (Replaces: 2222983)		Immediately	$ 181.10
9	WP2266903	Door Gasket, Magnetic (Replaces: 2222812)		Immediately	$ 340.02
10	2307754	Skin, Door (stainless)	Appelez-nous	-
11	WP2316868	Handle, Door (stainless) (Replaces: 2316868)		Immediately	$ 281.43
12	2309060	Spacer, Handle Side Door	Appelez-nous	-
13	W10759522	Screw (stainless) (Replaces: 488568)			$ 8.24
14	WP8281250	Screw (stainless) (Replaces: 8281250)			$ 11.42
15	2005433	Spacer, Door Skin Top			$ 23.33
16	W10142296	Spacer, Hinge Side Door	Appelez-nous	-
17	WP2257343	Spacer, Door Skin Bottom (Replaces: 2004935)			$ 86.72
18	2006342	Cover, Bottom Gap	Appelez-nous	-
19	WPW10323172	Utility Bin Endcap (right Hand) (Replaces: W10323172)			$ 8.60
19	WPW10323173	Utility Bin Endcap (left Hand) (Replaces: W10323173)			$ 8.60
20	W11348580	Bin, Utility Center (Replaces: W10323037)		Immediately	$ 181.10
21	W11348580	Door, Utility Bin (Replaces: 2257617)		Immediately	$ 181.10
22	W11752086	Bin, Shallow Door (Replaces: W10323600)			$ 68.19
23	W10323748	Bin, Gallon Door			$ 121.78
24	W10127710	Plate, Handle Door		Immediately	$ 25.94
25	WP308544	Screw (Replaces: 308544)		Immediately	$ 8.30
