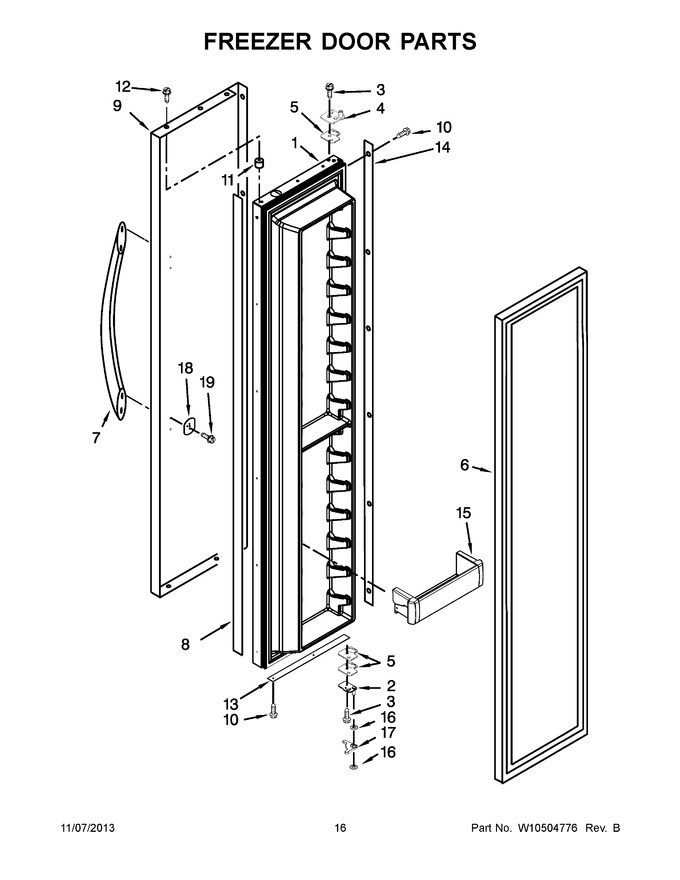

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193487 | Freezer Door Assembly |
|
- | |||||
| 2 | W11752085 | Assembly, Bottom Hinge (Replaces: 2302879) |
|
$ 63.07 | |||||
| 3 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 4 | W11724512 | Assembly, Top Hinge (Replaces: 2266854) |
|
$ 312.50 | |||||
| 5 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 130.37 | ||||
| 6 | WP2266901 | Gasket, Door (Replaces: 2222810) |
|
$ 369.84 | |||||
| 7 | WP2316868 | Handle, Door (stainless) (Replaces: 2316868) |
|
Immediately | $ 281.43 | ||||
| 8 | 2309060 | Spacer, Handle Side Door |
|
- | |||||
| 9 | 2307757 | Skin, Door (stainless) |
|
- | |||||
| 10 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 11 | 2005433 | Spacer, Door Skin Top |
|
$ 23.33 | |||||
| 12 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 8.24 | |||||
| 13 | WP2257333 | Spacer, Door Skin Bottom (Replaces: 2004933) |
|
$ 140.92 | |||||
| 14 | W10142296 | Spacer, Hinge Side Door |
|
- | |||||
| 15 | W11590561 | Bin, Shallow (Replaces: W10323603) |
|
$ 94.23 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | 2006342 | Cover, Bottom Gap |
|
- | |||||
| 18 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 19 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 |
