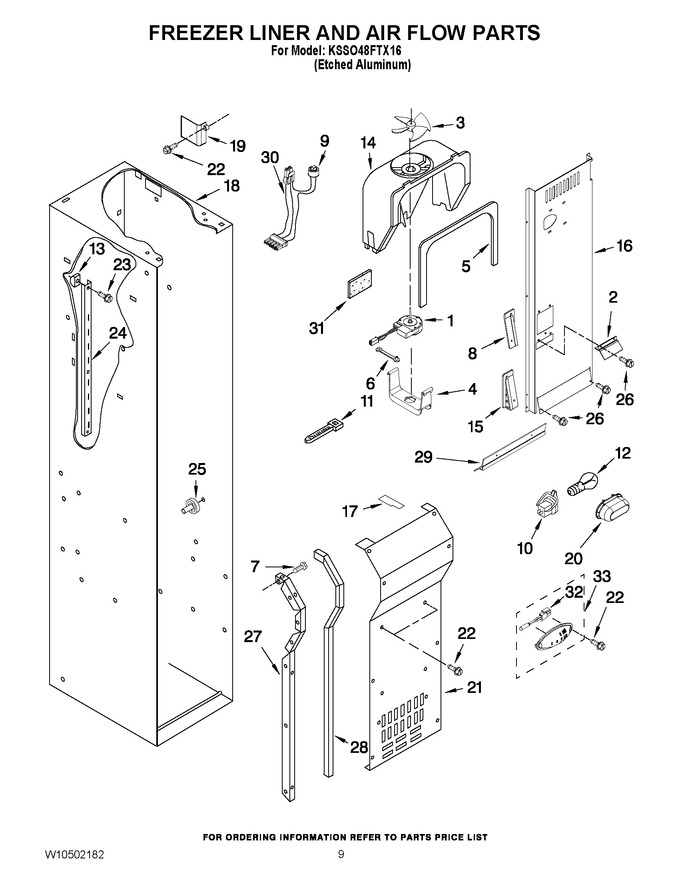

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11671461 | Fan Motor (Replaces: W10436861) |
|
Immediately | $ 185.87 | ||||
| 2 | 2266801 | Deflector, Air |
|
- | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 4 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 21.60 | |||||
| 5 | WP2302817 | Gasket, Scroll Assembly (Replaces: 2302817) |
|
$ 90.94 | |||||
| 6 | W11671528 | Grommet (Replaces: W10321090) |
|
- | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 8 | 2259464 | Wedge, Air Duct (right) |
|
$ 85.84 | |||||
| 9 | WPW10160570 | Defrost, Bi-metal (Replaces: W10160570) |
|
Immediately | $ 125.08 | ||||
| 10 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 7.92 | |||||
| 11 | WPW10339879 | Strap (Replaces: 2155774) |
|
$ 7.47 | |||||
| 12 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 11.45 | ||||
| 13 | 2259445 | Screw Support |
|
- | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 105.81 | ||||
| 15 | 2259465 | Wedge, Air Duct (left) |
|
- | |||||
| 16 | 2307778 | Air Duct |
|
- | |||||
| 17 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 17 | 2209482 | Block, Fan Scroll (right) |
|
- | |||||
| 18 | N/P | Liner(not Serviced) |
|
- | |||||
| 19 | 2259025 | Cover, Air Outlet |
|
$ 83.12 | |||||
| 20 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 21 | W10428001 | Cover, Evaporator |
|
- | |||||
| 22 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 23 | 2006475 | Screw |
|
- | |||||
| 24 | WP2259032 | Ladder Shelf (Replaces: 2259032) |
|
$ 72.92 | |||||
| 25 | W11527119 | Shelf, Stud (Replaces: W10173127) |
|
- | |||||
| 26 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 9.30 | |||||
| 27 | 2259355 | Evaporator,cover Rail (right) |
|
$ 113.89 | |||||
| 27 | 2221107 | Evaporator,cover Rail (left) |
|
- | |||||
| 28 | 2220904 | Gasket, Evaporator Cover |
|
$ 21.20 | |||||
| 29 | 2302851 | Support, Air Duct |
|
- | |||||
| 30 | W10139189 | Wire Assembly, Evaporator Fan |
|
$ 151.89 | |||||
| 31 | W11553819 | Insulation, Sound (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 32 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 27.77 | ||||
| 33 | WP2317844 | Thermistor Assy (Replaces: 2317844) |
|
$ 10.24 |
