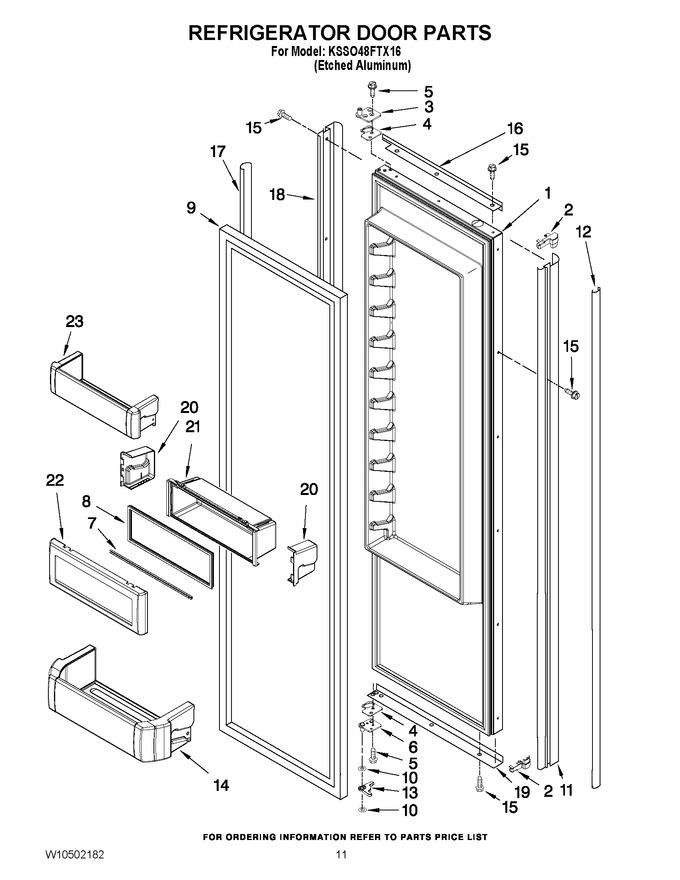

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193491		Refrigerator Door (includes Item 9)		Appelez-nous	-
2	2207457		Trim, Corner				$ 51.41
3	2252295		Hinge Assembly, Top				$ 51.53
4	W11673500		Spacer, Hinge   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2252293		Hinge Assembly, Bottom		Appelez-nous	-
7	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 162.99
8	W11348580		Utility Bin Gasket   (Replaces: 2222983)			Immediately	$ 162.99
9	WP2266903		Door Gasket, Magnetic   (Replaces: 2222812)			Immediately	$ 306.02
10	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 10.58
11	2309497S		Trim, Door (handle Side)				$ 290.72
12	2314003S		Cover, Trim (handle Side)				$ 157.17
13	2006342		Gap Cover, Bottom		Appelez-nous	-
14	W10323748		Shelf, Door (gallon)				$ 109.60
15	WP8281250		Screw   (Replaces: 8281250)				$ 10.28
16	2309487S		Trim, Door (top)				$ 212.65
17	2259448S		Cover Assy, Trim (hinge Side)				$ 161.55
18	2309498S		Trim, Door (hinge Side)				$ 291.94
19	2309493S		Trim, Door (bottom)		Appelez-nous	-
20	WPW10323172		Bin, End Cap (right Side)   (Replaces: W10323172)				$ 7.74
20	WPW10323173		Bin, End Cap (left Side)   (Replaces: W10323173)				$ 7.74
21	W11348580		Bin, Utility Center   (Replaces: W10323037)			Immediately	$ 162.99
22	W11348580		Lid, Utility Bin   (Replaces: 2257617)			Immediately	$ 162.99
23	W11752086		Shelf, Door   (Replaces: W10323600)				$ 61.37
