SELECT A DIAGRAM

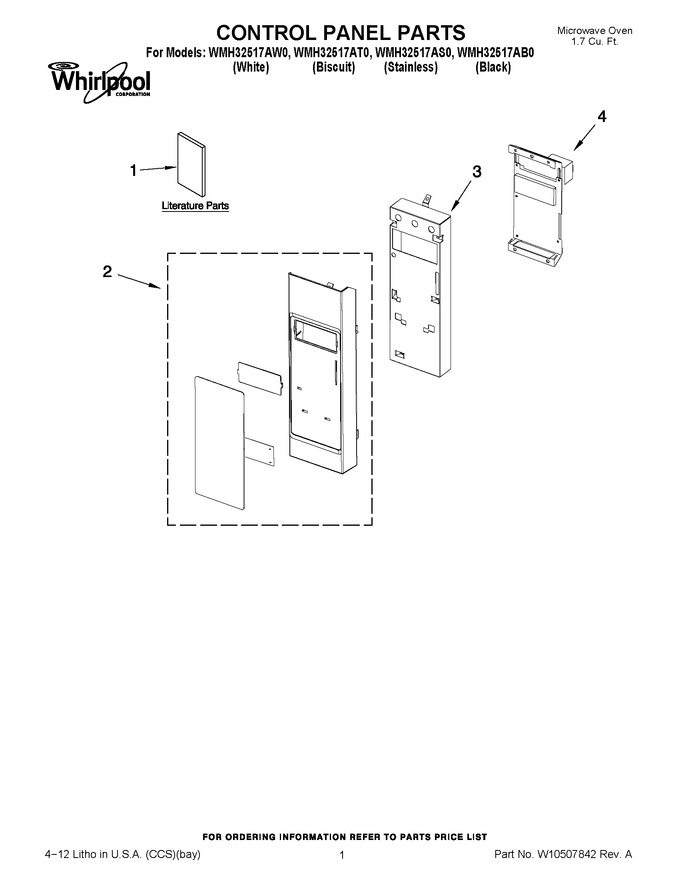

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10451742		U & C Guide		Appelez-nous	-
1	W10451744		Tech Sheet, Slim		Appelez-nous	-
1	W10451032		Quick Reference		Appelez-nous	-
1	W10247296		Install,instruct.		Appelez-nous	-
2	W10471679		Panel Asy, Control Includes Lens And Membrane Switch (white)		Appelez-nous	-
2	W10471682		Panel Asy, Control Includes Lens And Membrane Switch (biscuit)		Appelez-nous	-
2	W10444524		Panel Asy, Control Includes Lens And Membrane Switch (stainless)		Appelez-nous	-
2	W10471681		Panel Asy, Control Includes Lens And Membrane Switch (black)				$ 113.63
3	W10471683		Bracket, Control		Appelez-nous	-
4	W10476501		Microcomputer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
