01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

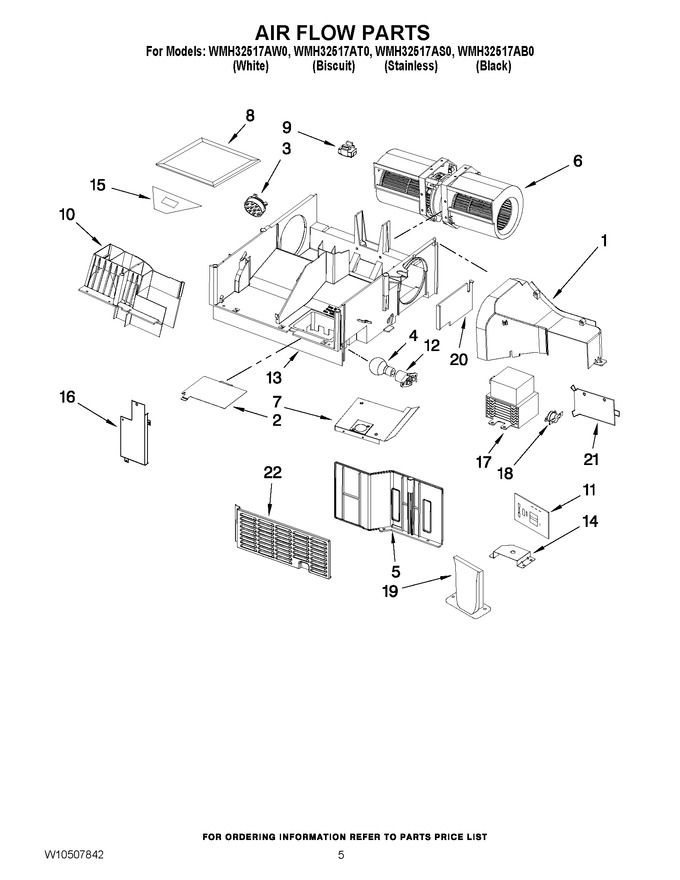

| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 9.17 | |||||
| 3 | 8206626 | Sensor, Humidity |
|
$ 84.84 | |||||
| 4 | 8206232A | Lamp (Replaces: 4393681) |
|
Immediately | $ 7.71 | ||||
| 5 | W10269231 | Cover, Side Inlet |
|
$ 98.10 | |||||
| 6 | W11441128 | Motor, Fan Assy (Replaces: W10409194) |
|
Immediately | $ 222.23 | ||||
| 7 | W10247762 | Air Guide |
|
- | |||||
| 8 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 20.21 | ||||
| 9 | W10110862 | Mounting, Nut |
|
- | |||||
| 10 | W10441568 | Air Guide,plate |
|
- | |||||
| 11 | WPW10452535 | Filter (Replaces: W10452535) |
|
$ 52.13 | |||||
| 12 | WPW10210878 | Holder, Lamp (Replaces: W10210878) |
|
Immediately | $ 34.87 | ||||
| 13 | W10387589 | Base Plate, Air Guide |
|
- | |||||
| 14 | W10532064 | Brkt-mntg,filter (Replaces: W10313270) |
|
- | |||||
| 15 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 16 | W10247764 | Cover, Inlet Air Cavity Guide |
|
- | |||||
| 17 | W10754299 | Magnetron (Replaces: W10216360) |
|
Immediately | $ 231.21 | ||||
| 18 | W10598693 | Thermostat (Replaces: 8206342) |
|
$ 65.26 | |||||
| 19 | W11381953 | Plate, Water Proof (Replaces: W10269467) |
|
- | |||||
| 20 | W10269469 | Cover, Right Duct |
|
$ 83.08 | |||||
| 21 | W10313274 | Bracket, Board |
|
$ 32.32 | |||||
| 22 | W10342991 | Shield, Finger |
|
$ 169.83 |
