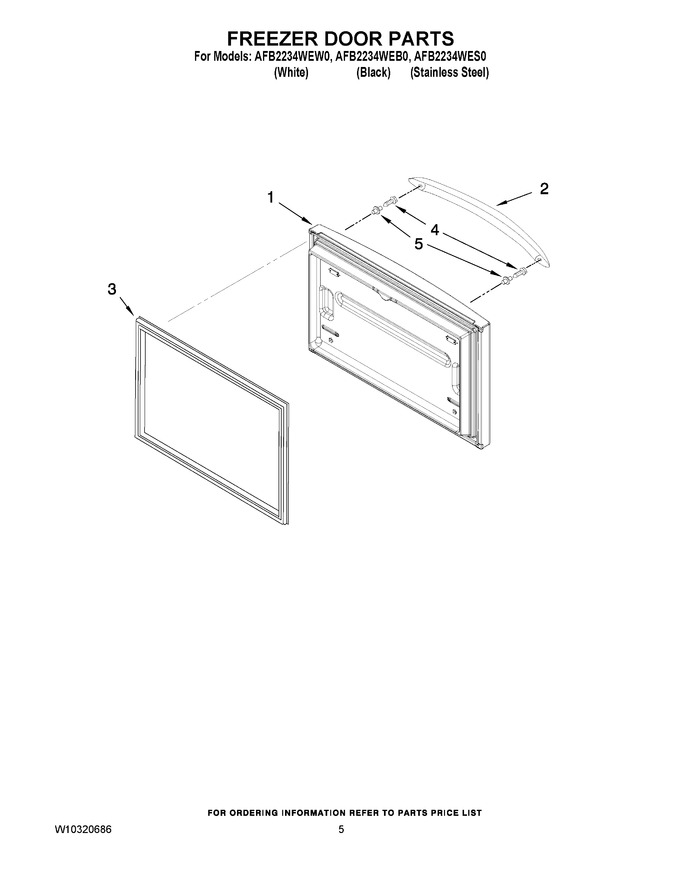

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977869WQ | Door, Freezer (white) (Replaces: 12977821WQ) |
|
$ 973.02 | |||||
| 1 | 12977821BQ | Door, Freezer (black) |
|
- | |||||
| 1 | 12977824SQ | Door, Freezer (stainless Steel) |
|
- | |||||
| 2 | W10274998 | Handle, Door (white) |
|
$ 109.03 | |||||
| 2 | W10274999 | Handle, Door (black) |
|
- | |||||
| 2 | W10123790 | Handle, Door (stainless Steel) |
|
$ 133.18 | |||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10164036) |
|
$ 193.98 | |||||
| 3 | WPW10436250 | Gasket, Door (black) (Replaces: W10164037) |
|
Immediately | $ 347.99 | ||||
| 4 | W10290759 | Screw-handle |
|
$ 5.83 | |||||
| 5 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 11.96 |
