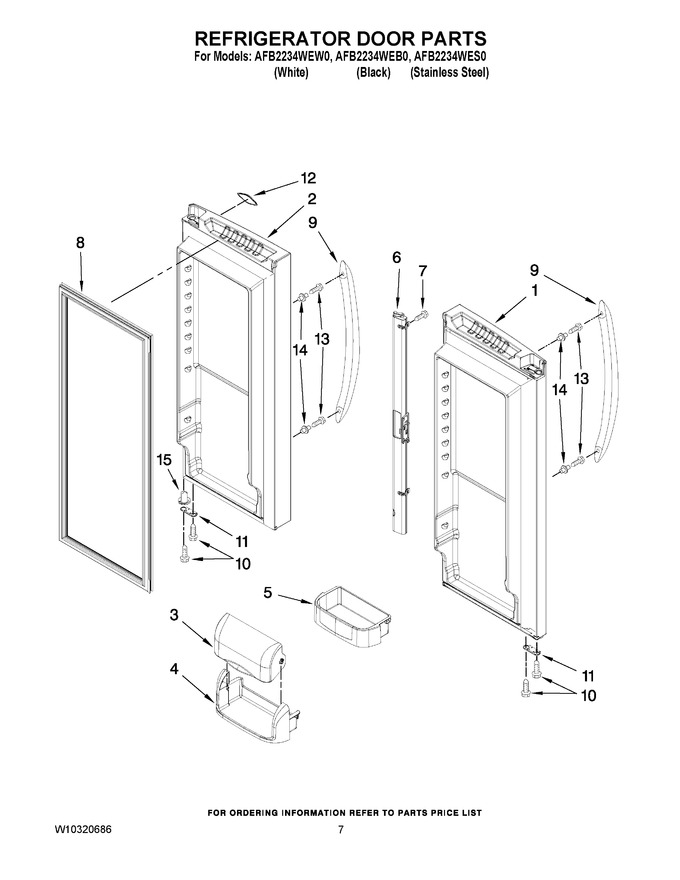

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978044WQ		Door, Left (white)		Appelez-nous	-
1	12978048SQ		Door, Left (stainless)		Appelez-nous	-
1	12978044BQ		Door, Left (black)		Appelez-nous	-
2	12978043BQ		Door, Right (black)		Appelez-nous	-
2	12978047SQ		Door, Right (stainless)				$ 421.73
2	12978043WQ		Door, Right (white)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WPW10324005		Bucket, Door (medium (1))   (Replaces: 12557212V)				$ 74.05
5	12918504V		Bucket, Door (bucket, Gallon (10 Inch Wide))				$ 53.79
5	67001141		Bucket, Door (small (2))   (Replaces: 12557211V)			Immediately	$ 75.15
5	12918204K		Bucket, Door (bucket, Gallon (13 Inch Wide))		Appelez-nous	-
6	WP12722803B		Mullion, Door (black)   (Replaces: 12722803B)			Immediately	$ 206.80
6	WP12722803W		Mullion, Door (white)   (Replaces: 12722803W)			Immediately	$ 261.21
7	W11311945		Screw   (Replaces: 12990204)				$ 14.02
8	W10830189		Gasket, Door (white - Rh)   (Replaces: W10163894N)			Immediately	$ 228.91
8	W10830287		Gasket, Door (white - Lh)   (Replaces: W10218678)			Immediately	$ 173.36
9	13004801B		Handle, Door (black)				$ 83.66
9	13004801W		Handle, Door (white)				$ 85.34
10	WP98165		Screw   (Replaces: 12990504)				$ 8.00
11	12968202W		Stop, Door (white)				$ 65.99
11	W11708403		Stop, Door (black )   (Replaces: 12968202B)			Immediately	$ 14.05
12	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
13	W10290759		Screw-handle				$ 5.83
14	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
15	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.76
