Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel And Latch Parts
02 - Control Panel And Latch Parts

Diagram for 03 - Inner Door Parts
03 - Inner Door Parts

Diagram for 04 - Fill, Drain And Overfill Parts
04 - Fill, Drain And Overfill Parts

Diagram for 05 - Tub And Frame Parts
05 - Tub And Frame Parts

Diagram for 06 - Pump And Motor Parts
06 - Pump And Motor Parts

Diagram for 07 - Upper Wash And Rinse Parts
07 - Upper Wash And Rinse Parts

Diagram for 08 - Heater Parts
08 - Heater Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Lower Washarm Parts
11 - Lower Washarm Parts

Diagram for 12 - Optional Parts (not Included)
12 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10350359 Use & Care Guide (english/french) Appelez-nous -
1 W10401504 Instructions, Installation Appelez-nous -
1 W10350141 Tech Sheet, French Appelez-nous -
1 W10350232 Energy Guide Appelez-nous -
1 W10350360 Use & Care Guide (spanish) Appelez-nous -
1 W10350140 Tech Sheet, English Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Vapor, Barrier Assembly Door   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10323563 Panel Front (includes 8 & 11) (stainless) Special Order $ 166.57

4 W10323573 Panel Front (includes 8 & 11) (black) Special Order $ 144.31

4 W10323571 Panel Front (includes 8 & 11) (white) Special Order $ 144.38

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 195.64

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 163.70

6 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

7 WPW10503548 Fastener (black)   (Replaces: W10331789) In-Stock Immediately $ 30.39

7 WPW10503549 Fastener (white)   (Replaces: W10331793) In-Stock Immediately $ 7.77

8 WPW10393264 Name Plate   (Replaces: W10393264) Special Order $ 67.74

9 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

10 WPW10350242 Bracket, Panel Control   (Replaces: W10350242) Special Order $ 88.32

11 W10343321 Pocket, Handle (white) Special Order $ 144.59

11 W10343324 Pocket, Handle (black) Special Order $ 78.37

11 W10369758 Pocket, Handle (silver) Appelez-nous -
12 W11126003 Insulation, Door   (Replaces: W10315897) In-Stock Immediately $ 65.25

13 W10831329 Insulation, Access Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

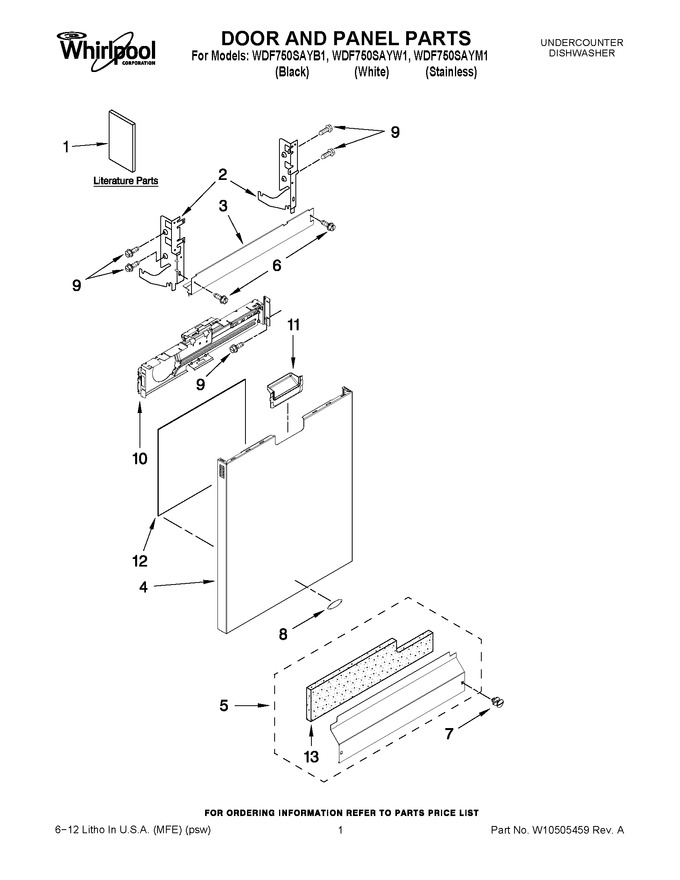

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for WDF750SAYM1
