SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)

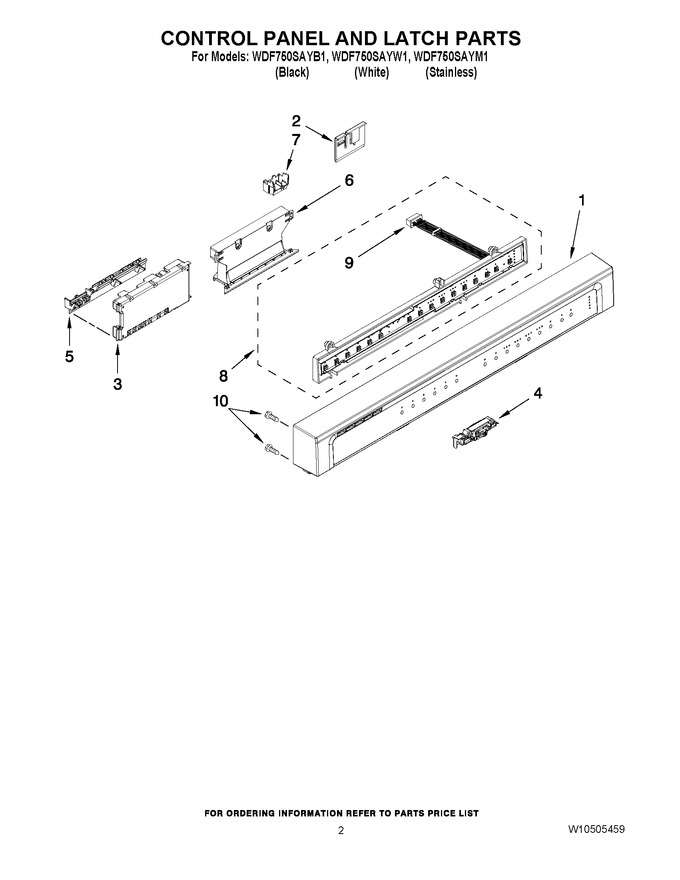

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10350252		Console Assembly (includes Active Overlay & Insert) (black)				$ 102.97
1	WPW10350330		Console Assembly (includes Active Overlay & Insert) (white)   (Replaces: W10350253)				$ 232.25
1	W10350254		Console Assembly (includes Active Overlay & Insert) (grey)		Appelez-nous	-
2	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
3	W10479764		Control, Electronic   (Replaces: W10461369)				$ 283.77
4	W10619006		Switch And Latch Assembly   (Replaces: W10380262)			Immediately	$ 39.09
5	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
6	WPW10321839		Handle (black)   (Replaces: W10321839)			Immediately	$ 149.02
6	W10358150		Handle (white)				$ 58.72
7	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
8	WPW10629166		Housing, User Interface   (Replaces: W10440700)			Immediately	$ 315.65
9	W10327246		Wire, Jumper				$ 67.01
10	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
