01 - Cooktop Parts

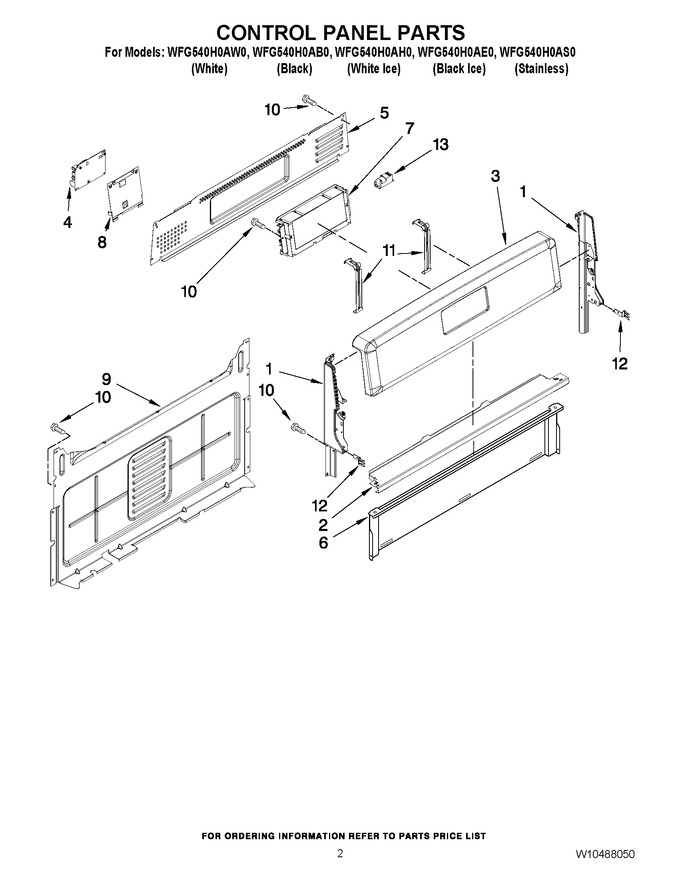

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand White) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (right Hand White) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219665 | Endcap, Right Hand (black) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219664 | Endcap, Left Hand (black) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 2 | W10211996 | Bracket, Console |
|
- | |||||
| 3 | W11234434 | Console (black) (Replaces: W10370100) |
|
$ 345.31 | |||||
| 3 | W10339408 | Console (stainless) |
|
$ 122.16 | |||||
| 3 | W11234436 | Console (white) (Replaces: W10370102) |
|
$ 345.31 | |||||
| 4 | WPW10331686 | Module, Spark (Replaces: W10331686) |
|
Immediately | $ 393.86 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | WPW10349742 | Control, Lcc195 (stainless (stainless & Black Ice Models Only)) (Replaces: W10349742) |
|
$ 511.04 | |||||
| 7 | WPW10348712 | Control, Lcc195 (black) (Replaces: W10348712) |
|
$ 492.03 | |||||
| 7 | WPW10348713 | Control, Lcc195 (white) (Replaces: W10348713) |
|
Immediately | $ 446.96 | ||||
| 7 | WPW10475745 | Control, Lcc195 (white Chromium (white Ice Models)) (Replaces: W10475745) |
|
$ 448.55 | |||||
| 8 | W10333917 | Bracket, Dsi |
|
- | |||||
| 9 | W10184251 | Cover, Main Wire |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 12 | 8523412 | Bracket, Rear |
|
$ 167.90 | |||||
| 13 | 8522425 | Module, Spark |
|
$ 122.75 |
