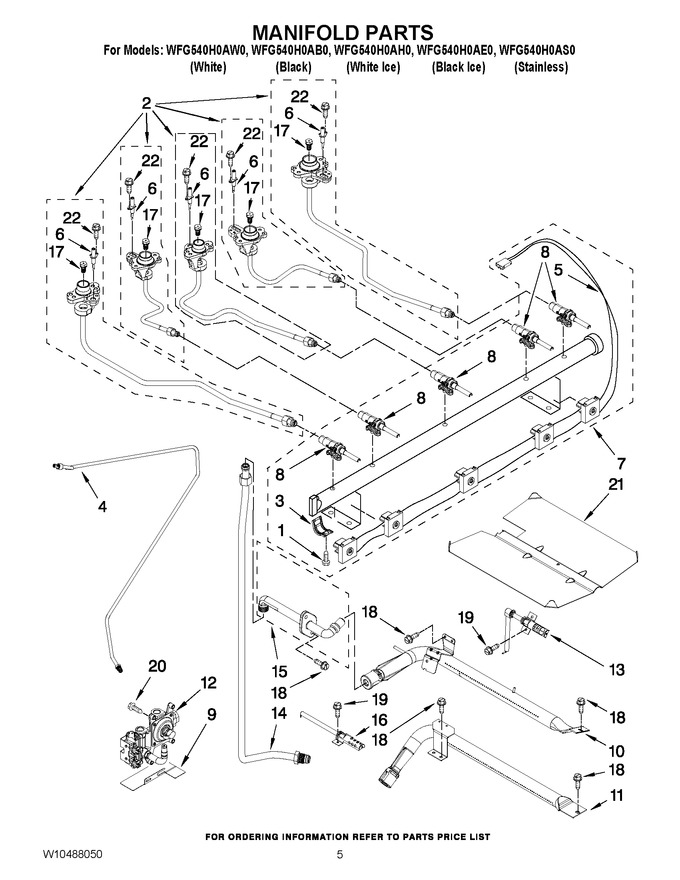

04 - Manifold Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | WPW10347410 | Holder, Orifice ((rf) 15k) (Replaces: W10347410) |
|
$ 111.56 | |||||
| 2 | WPW10157419 | Holder, Orifice ((center) 8k) (Replaces: W10157419) |
|
$ 114.78 | |||||
| 2 | W10170347 | Holder, Orifice ((lf) 15k) |
|
$ 48.41 | |||||
| 2 | W10157418 | Holder, Orifice ((lr) 9.5k) |
|
$ 49.23 | |||||
| 2 | WPW10157415 | Holder, Orifice ((rr) 5k) (Replaces: W10157415) |
|
$ 115.46 | |||||
| 3 | W10949105 | Bracket, Saddle (Replaces: W10295996) |
|
$ 22.75 | |||||
| 4 | W10510125 | Tubing, Main Supply |
|
$ 218.65 | |||||
| 5 | WPW10413868 | Harness, Igniter Includes Switches (Replaces: W10413868) |
|
$ 198.36 | |||||
| 6 | WPW10216419 | Ignitor, Top Burner (Replaces: W10216419) |
|
Immediately | $ 36.72 | ||||
| 7 | WPW10413870 | Assembly, Manifold (Replaces: W10413870) |
|
$ 324.60 | |||||
| 8 | WPW10279615 | Valve (lf/rf) (Replaces: W10279615) |
|
$ 258.91 | |||||
| 8 | WPW10247744 | Valve (rr) (Replaces: W10247744) |
|
$ 280.12 | |||||
| 8 | WPW10279614 | Valve (lr/center) (Replaces: W10279614) |
|
$ 279.81 | |||||
| 9 | W10224921 | Bracket, Regulator |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 94.98 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10439243) |
|
Immediately | $ 91.65 | ||||
| 12 | WPW10602004 | Valve, Regulator (Replaces: W10224915) |
|
$ 415.20 | |||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 103.98 | ||||
| 14 | W10306050 | Tubing (broiler Fitting To Valve) |
|
$ 189.82 | |||||
| 15 | W10583216 | Fitting, Broiler (Replaces: W10319134) |
|
$ 95.85 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 85.81 | ||||
| 17 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 17 | WPW10347414 | Orifice, Burner (right Front) (Replaces: W10347414) |
|
$ 90.50 | |||||
| 17 | W10170511 | Orifice, Burner (left Front) |
|
$ 42.01 | |||||
| 17 | WPW10170508 | Orifice, Burner (left Rear) (Replaces: W10170508) |
|
$ 95.21 | |||||
| 17 | WPW10170507 | Orifice, Burner (center) (Replaces: W10170507) |
|
$ 97.85 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 21 | 3601P336-45 | Baffle, Burner |
|
$ 227.09 | |||||
| 22 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| NI | WPW10400494 | Orifice, Lp Bake (Replaces: W10400494) |
|
Immediately | $ 113.46 | ||||
| NI | W10400497 | Orifice, Lp Broil |
|
$ 46.65 | |||||
| NI | WPW10170516 | Lp Kit, Surface Burners (Replaces: W10170516) |
|
$ 111.52 |
