01 - Control Panel Parts


02 - Door Parts

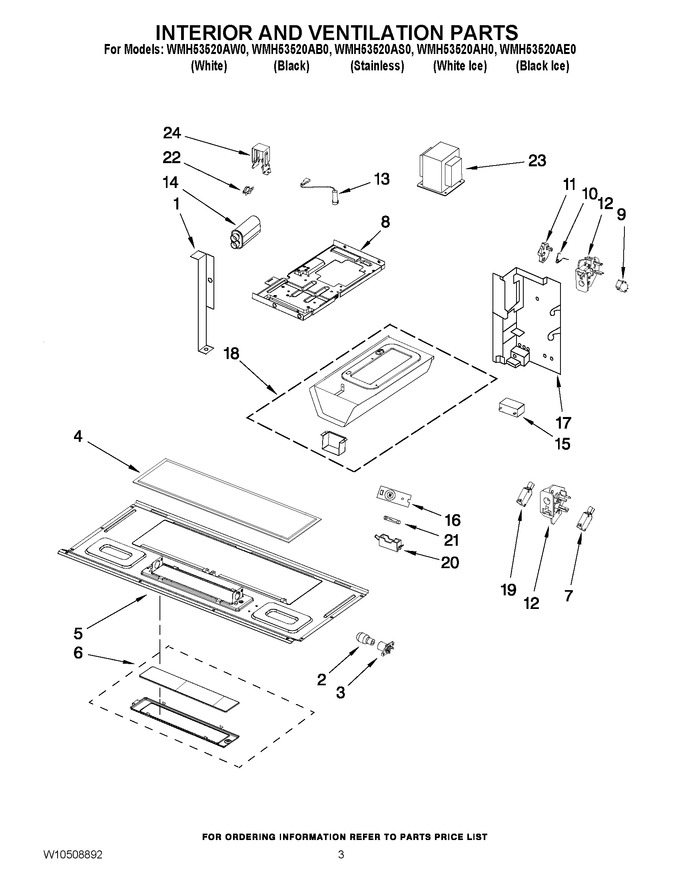

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top				$ 35.62
2	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 7.71
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 257.07
6	W10240330		Assy, Lamp Holder				$ 7.55
7	W10269458		Switch, Micro Szm-v16-fc-62			Immediately	$ 40.11
8	W10245184		Plate, Chassis		Appelez-nous	-
9	W10269460		Switch, Micro Szm-v16-fc-63			Immediately	$ 45.95
10	W10156812		Spring, Interlock			Immediately	$ 12.14
11	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
12	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
13	W11256462		Diode, H.v.   (Replaces: W10245187)			Immediately	$ 34.86
14	W10850446		Capacitor, H.v.   (Replaces: W10343300)				$ 195.87
15	W11405831		Capacitor, 125 V   (Replaces: W10245191)				$ 44.36
16	W10163422		Thermistor (pcba)				$ 179.70
17	W10245193		Plate, Side				$ 25.63
18	W10461442		Chassis Assembly		Appelez-nous	-
19	W10727360		Switch, Micro Szm-v16-fc-61   (Replaces: W10269457)			Immediately	$ 5.82
20	W10245194		Holder, Fuse				$ 87.31
21	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
22	W10864742		Thermostat, Cavity   (Replaces: W10245195)				$ 88.67
23	W10245185		Transformer, H.v.		Appelez-nous	-
24	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 29.69
