01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts

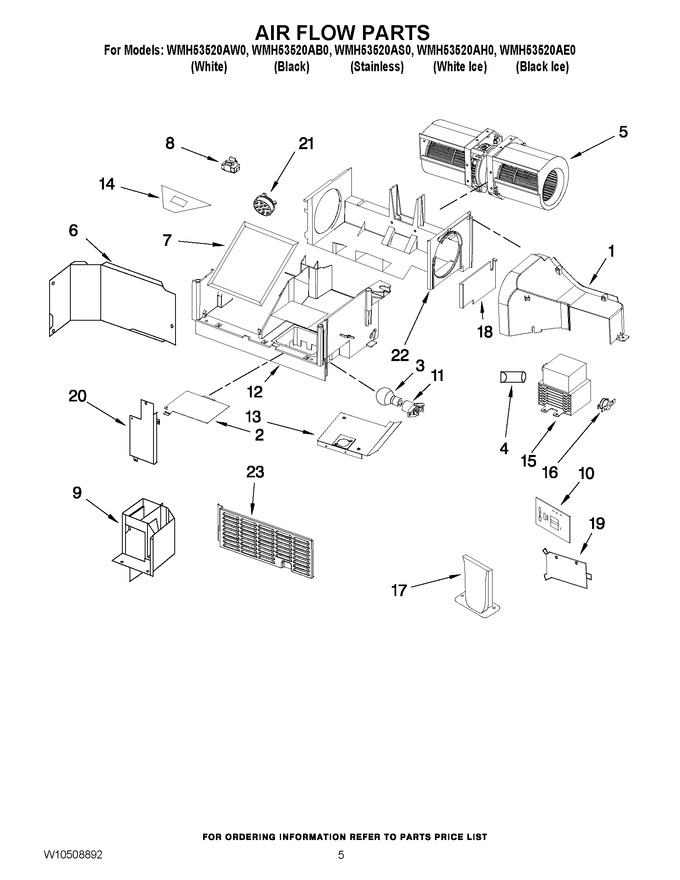

04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10441188		Deflector, Air		Appelez-nous	-
2	8206382		Cover, Lamp				$ 9.17
3	8206232A		Lamp   (Replaces: 4393681)			Immediately	$ 7.71
4	4393605		Cover, Magnetron Terminals		Appelez-nous	-
5	W10409198		Assy, Fan Motor				$ 175.21
6	W10245210		Plate, Air Guide		Appelez-nous	-
7	8206230A		Filter, Charcoal   (Replaces: 8206230)			Immediately	$ 20.21
8	W10110862		Mounting, Nut		Appelez-nous	-
9	W10441569		Air Guide		Appelez-nous	-
10	WPW10452535		Filter, Noise   (Replaces: W10452535)				$ 52.13
11	WPW10210878		Holder, Lamp   (Replaces: W10210878)			Immediately	$ 34.87
12	W10387590		Base Plate, Air Guide		Appelez-nous	-
13	W10245179		Support, Sensor				$ 77.72
14	W10139750		Socket, Motor Wire		Appelez-nous	-
15	W10245183		Magnetron			Immediately	$ 245.45
16	W10598693		Thermostat, Magnetron   (Replaces: 8206342)				$ 65.26
17	W11381953		Plate, Water Proof   (Replaces: W10269467)		Appelez-nous	-
18	W10245182		Cover, Right Duct		Appelez-nous	-
19	W10313274		Bracket, Board				$ 32.32
20	W10245214		Cover, Inlet Air Cavity Guide				$ 34.36
21	W10245178		Sensor, Humidity				$ 177.01
22	W10432571		Holder, Fan Motor		Appelez-nous	-
23	W10342991		Shield, Finger				$ 169.83
