View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

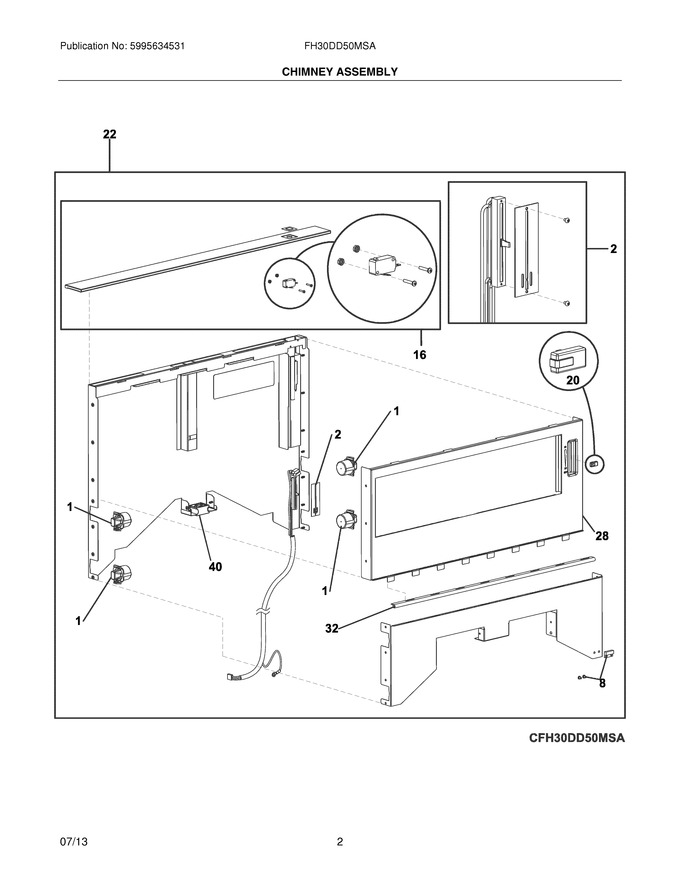

03 - Chimney Assembly
05 - Body/motor Parts
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304487428 | Guide Assy,plunger ,w/spring |
|
$ 464.24 | |||||
| 8 | 5304487435 | Magnet Kit,reed ,w/instructions ,& Screws |
|
- | |||||
| 16 | 5304487441 | Trim Assy,top ,30`` ,w/membrane ,& Lift Switch |
|
- | |||||
| 20 | 5304487445 | Knob,fan Control |
|
- | |||||
| 28 | 5304487455 | Panel,chimney ,30`` |
|
- | |||||
| 32 | 5304487459 | Seal Kit,chimney ,30`` |
|
- | |||||
| 40 | 5304487525 | Nut,drive |
|
- | |||||
| F2 | 5304487429 | Switch Kit,blower ,w/harness ,& Screws |
|
- | |||||
| F22 | 5304487447 | Chimney Assy,complete |
|
$ 717.88 |
