View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Chimney Assembly

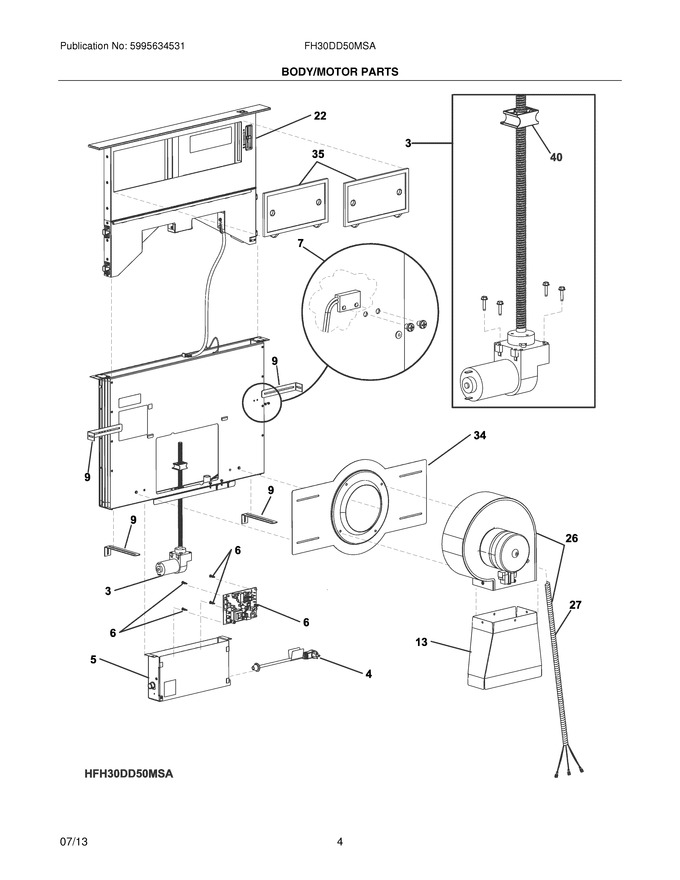

05 - Body/motor Parts
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5304487432 | Box Assy,control ,w/cover ,& Screws |
|
- | |||||
| 9 | 5304487436 | Bracket Kit,cabinet ,w/screws |
|
- | |||||
| 13 | 5304487438 | Duct,blower ,transition |
|
- | |||||
| 34 | 5304487461 | Plate,fan ,slide |
|
- | |||||
| 35 | 5304487462 | Filter Kit,30`` |
|
- | |||||
| 40 | 5304487525 | Nut,drive |
|
- | |||||
| F22 | 5304487447 | Chimney Assy,complete |
|
$ 717.88 | |||||
| F26 | 5304487452 | Blower Assy,complete ,w/harness |
|
- | |||||
| F27 | 5304487454 | Wiring Harness,assy ,w/conduit ,& Bushing |
|
- | |||||
| F3 | 5304487430 | Motor Kit,lift ,w/screws ,& Drive Nut |
|
$ 498.06 | |||||
| F4 | 5304487431 | Cord Assy,power |
|
- | |||||
| F6 | 5304487433 | Board Kit,control ,w/standoffs ,& Mini Manual |
|
- | |||||
| F7 | 5304487434 | Switch Kit,reed ,w/instructions ,& Screws |
|
$ 313.02 |
