01 - Top And Cabinet Parts

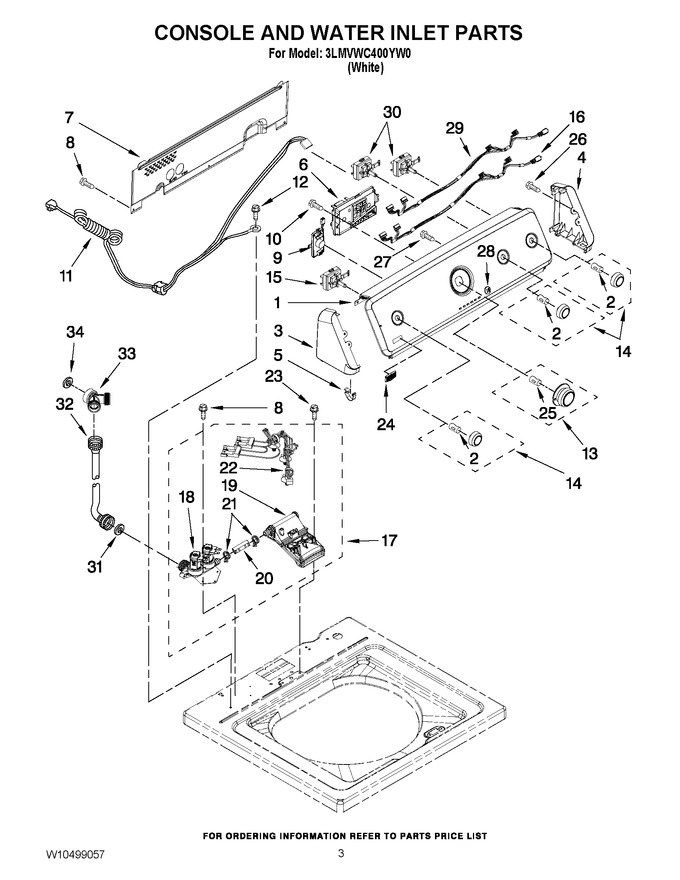

02 - Console And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10464667		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
3	W10193826		Cap, End (l.h.) (includes Item 5)		Appelez-nous	-
4	W10193823		Cap, End (r.h.) (includes Item 5)		Appelez-nous	-
5	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10480700		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10420985)				$ 251.29
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
9	W10522615		Filter, Line Assembly   (Replaces: W10434306)		Appelez-nous	-
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
11	W10446856		Cord, Power		Appelez-nous	-
12	W10846509		Screw, Power (cord Ground)   (Replaces: 3400076)			Immediately	$ 7.76
13	WPW10317454		Knob, Timer   (Replaces: W10317454)				$ 60.45
14	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 60.31
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 173.43
16	W10291177		Harness, Upper (temperature)				$ 145.40
17	W10360889		Inlet Assembly, Water		Appelez-nous	-
18	W10356260		Valve, Water Mixing		Appelez-nous	-
19	WPW10441423		Vacuum Break   (Replaces: W10441423)				$ 86.03
20	W10238347		Hose, Vacuum Break				$ 24.63
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.40
22	W10474662		Harness, Valve		Appelez-nous	-
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.19
24	W10323734		Badge				$ 60.90
25	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.81
26	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
27	3400073		Screw, Ground		Appelez-nous	-
28	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 72.38
29	W10481152		Harness, Upper (deep Clean)		Appelez-nous	-
30	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 181.40
31	WP16123		Washer, Water Inlet Hose   (Replaces: W10242307)				$ 7.70
32	WPW10615809		Hose, Water Inlet (cold Water)   (Replaces: 3949383)				$ 99.72
32	WPW10615831		Hose, Water Inlet (hot Water)   (Replaces: 3949382)				$ 98.71
33	WPW10269488		Connector, Y Hose   (Replaces: W10269488)				$ 85.37
34	WP3357450		Washer, Export Hose Adaptor   (Replaces: 3357450)				$ 11.01
NI	W10474959		10a Cord Adapters: (south Africa)		Appelez-nous	-
NI	N/P		Parts Not Shown		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476822		10a Cord Adapters: (european)   (Replaces: W10476822)				$ 77.05
NI	WPW10476820		10a Cord Adapters: (british)   (Replaces: W10476820)				$ 26.70
